Product Overview
£141.44 (ex VAT) | £169.73 (inc VAT)
Promotion - 25% off sale (Normally £188.59)

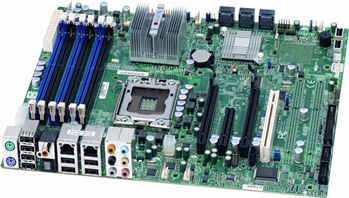

Produced by award winning hardware manufacturers Supermicro, the C7X58 is the ideal motherboard for those looking to create the ultimate in high end PC's and workstations.
Using the Core i7/i7 extreme edition and Intel Xeon 5600/5500/3600/3500 processors this versatile board based on the Intel X58 Express chipset can hold up to 24GB DDR3 RAM and has 6 SATA (3Gbps) ports that are RAID compatible. With 2 (x16) PCI-E 2.0 slots and onboard support for nVidia SLI and ATI CrossFireX technology, this board can provide the ultimate in graphical processing power. This is a rock solid platform that is essential for those seeking to build the highest quality computers.
Key Features
Intel Core i7 / i7 Extreme Edition, and Intel Xeon 5600/5500/3600/3500 series processors (QPI up to 6.4 GT/s) Intel X58 Express Chipset Up to 24GB DDR3 1600/1333/1066/800 ECC / non-ECC Un-Buffered DIMM Intel Dual 82574L Gigabit Ethernet Controller 6x SATA (3.0Gbps) Ports RAID 0, 1, 5, 10 2 (x16) PCI-Express 2.0, 1 (x4) PCI-Express (using x8 slot), 1x 32-bit PCI Slots Realtek ALC883 7.1 HD Audio 12x USB 2.0 Ports Supports nVidia SLI and ATI CrossfireX Technology 2x IEEE 1394a Headers
Request more information Send to a friend View all motherboards
-
Audio
Realtek ALC883 High Definition 7.1 Channel Audio
-
BIOS Features
ACPI 1.0
ACPI 2.0
DMI 2.3
PCI 2.2
Plug and Play (PnP)
SMBIOS 2.3
USB keyboard support
-
BIOS Type
4MB Flash EEPROM with SPI BIOS
-
Chipset
Intel X58 (Tylersburg)
-
Chipset I/O Controller
ICH10
-
CPU Family
Intel Core i7
Intel Core i7 Extreme
Intel Xeon
-
CPU Manufacturer
Intel
-
CPU Model
i7-965X
i7-975
i7-985
-
CPU Quantity (Maximum)
1
-
CPU Series
Intel Xeon 3500
Intel Xeon 3600
Intel Xeon 5500
Intel Xeon 5600
-
Drive Support
SATA
-
Error Detection
Corrects single-bit errors
Detects double-bit errors (using ECC memory)
Supports Intel x4 and x8 SDDC
-
Expansion Slots
1 x 32-bit PCI slot
1 x (x4) PCI-E
2 x (x16) PCI-E
-
Form Factor
ATX
-
Input/Output
1 x Floppy controller
1 x PS/2 keyboard port
1 x PS/2 mouse port
1 x S/PDIF Optical Port
2 x IEEE 1394 headers
2 x Serial Headers
6 x analog audio outputs
6 x SATA ports
Line-in / Line-out / Microphone Ports
-
Manufacturer
Supermicro
-
Memory (Maximum)
24GB
-
Memory Sizes
1GB
2GB
4GB
256MB
512MB
-
Memory Slots
6
-
Memory Speed
800MHz
1066MHz
1333MHz
1600MHz
-
Memory Type
DDR3 Unbuffered ECC SDRAM
DDR3 Unbuffered Non-ECC SDRAM
-
Memory Voltage
1.5V
-
Network Adapter
Intel 82573V/L
-
Network Ports
2
-
Network Socket
RJ45
-
Packaging
Bulk
-
Power Management
ACPI Power Management
Internal / External modem remote ring-on
Keyboard Wakeup
Main Switch Override
Power-on mode for AC power recovery
Suspend to RAM (STR)
-
RAID Support (SATA)
RAID 0
RAID 1
RAID 5
RAID 10
-
SATA Controller
Intel ICH10R
-
Software Management
NMI
SuperDoctor III
Watch Dog
-
System Bus
QPI (up to 6.4 GT/s)
