SUPERMICRO MegaDC GPU & Storage Node

SYS-6129P-ACR12N4G

• Dual Socket P (LGA 3647) support 2nd Gen Intel® Xeon® Scalable CPUs
• 16 DIMMs; up to 3TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM
• 2 PCI-E 3.0 x16 Double-Width FHFL GPGPU, 1 PCI-E 3.0 x8 Low Profile, 1 PCI-E 3.0 x16 Low Profile, 1 PCI-E 3.0 x16 (AIOM)
• 12 Hot-swap 3.5" (tool-less)(4 NVMe/SAS3/SATA3 hybrid ports)
• 2 M.2 NVMe/SATA up to 80mm
• 2x 25Gb SFP28 onboard
• 1600W Redundant Power Supplies - Titanium Level High-efficiency
• Key Applications: Hyperscale Data Center, GPU Accelerated Compute, GPU Computing, High End Enterprise Server

Manufacturer: SUPERMICRO
Item #:SYS-6129P-ACR12N4G

REQUEST TEST DRIVE

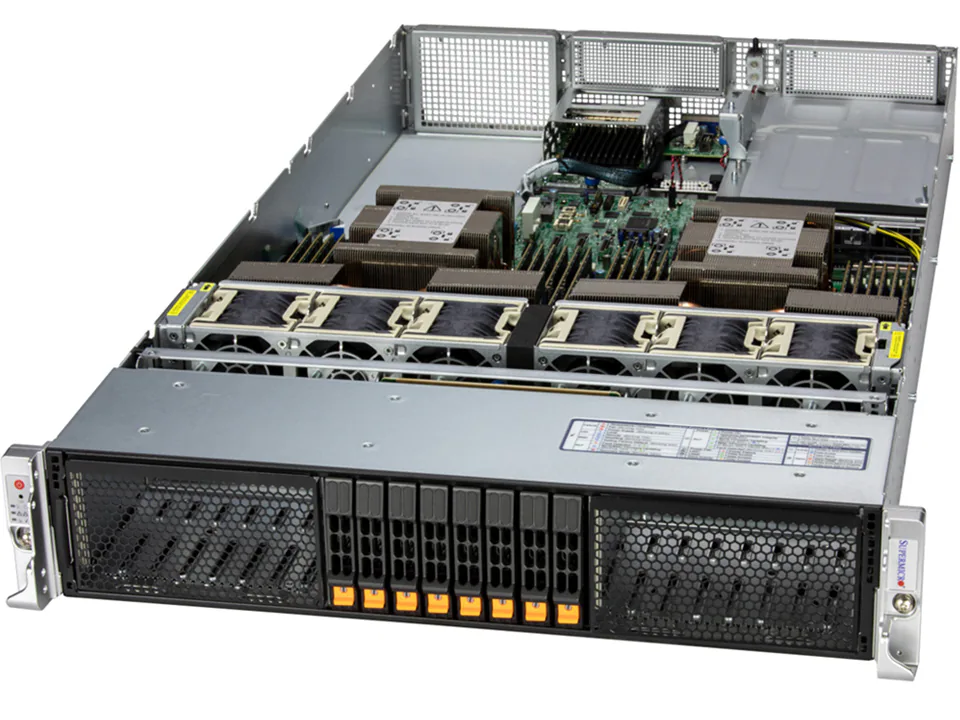

SUPERMICRO A+ GPU Server

4124GS-TNR

• Supports up to 10 double-width GPUS - Direct connect for maximum performance
• Dual AMD EPYC™ 7002 Series Processors
• 8TB Registered ECC DDR4 3200MHz SDRAM in 32 DIMMs
• 8 PCI-E 4.0 x16 + 2 PCI-E 4.0 x8 slots (Option: 10 PCI-E 4.0 x16 slots; depends on NVMe devices)
• Up to 24 Hot-swap 2.5" drive bays; 4x 2.5" SATA drives and 4x 2.5" NVMe drives supported with included H/W* (*Depends on PCI-E quantity based on #4)
• 2 GbE LAN ports (rear)

Manufacturer: SUPERMICRO
Item #:4124GS-TNR

REQUEST TEST DRIVE

BOSTON VENOM TR3 SERIES

VENOM TR31-10NP / VENOM TR32-10NP

• Mid Tower and Full Tower Chassis respectively
• Single socket sTRX4 supports 3rd Gen. AMD Ryzen™ Threadripper™ Series Processors
• DDR4 Non-ECC / ECC UDIMM 4400MHz (OC)
• Up to 256GB in 8x DIMM slots (4 channels)
• Depending on config, up to 4 x AMD or NVIDIA GPUs
• Up to 8 M.2 PCIe 4.0 NVMe SSD with NVMe RAID support

Manufacturer: BOSTON
Item #:VENOM TR31-10NP / VENOM TR32-10NP

REQUEST TEST DRIVE

Supermicro SYS-1029UZ-TN20R25M

SYS-1029UZ-TN20R25M

• Dual Socket P (LGA 3647) support 2nd Gen Intel® Xeon® Scalable processors (Cascade Lake/Skylake)
• 24 DIMMs; up to 6TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM, Supports Intel® Optane™ DCPMM
• Up to 2 PCI-E 3.0 x8 slots (FH, FL)
• 2x 25G SFP28 Ethernet ports
• 20 Hot-swap 2.5" 7mm drive bays; up to 20 NVMe
• 1 M.2 NVMe port, Optional extra M.2 NVMe and SATA3 port

Manufacturer: BOSTON
Item #:SYS-1029UZ-TN20R25M

REQUEST TEST DRIVE

BOSTON VENOM 2001-10TP

VENOM 2001-10TP

• Single socket SP3 supports AMD EPYC™ 7001/7002 series processor
• DDR4 ECC RDIMM 3200MHz Up to 2TB in 8x DIMM slots (8 channels)
• Up to 3x AMD or NVIDIA® graphics card
• 3 PCIe 3.0 x16 FHFL, 3 PCIe 3.0 x8 FHFL
• 6x Fixed 2.5/3.5” & 2x Fixed 2.5” SATA 1x M.2 PCIe 3.0 x4 in 2280/22110 form factor
• Intel® I210 dual port 1GbE (RJ45) Realtek RTL8211E PHY (RJ45 dedicated for IPMI)

Manufacturer: BOSTON
Item #:SYS-1029UZ-TN20R25M

REQUEST TEST DRIVE

BOSTON VENOM 1001-10NP

VENOM 1001-10NP

• 9th gen Intel Core CPU (Coffee Lake) with up to 8 cores/16 threads
• Up to 32GB DDR4 system memory
• Double-width PCIe 3.0 expansion slot for NVIDIA® or AMD GPU
• High Performance NVMe boot drive for the fastest application loading and data transfer
• Wireless charging station for your Qi enabled devices
• Whisper quiet operation

Manufacturer: BOSTON
Item #:VENOM 1001-10NP

REQUEST TEST DRIVE

BOSTON VENOM 1002-10NP

VENOM 1002-10NP

• Single socket H4 (LGA 1151) supports Intel® Xeon® E-2100/E-2200, Intel® 8th/9th Gen. Core i3/i5/i7 series, Intel® Celeron® and Intel® Pentium®
• DDR4 ECC / Non-ECC UDIMM 2666MHz, Up to 128GB in 4x DIMM slots (2 channels)
• Up to 2x AMD Radeon™ Pro or NVIDIA® Quadro®
• 2x PCIe 3.0 x16 FHFL , 1x PCIe 3.0 x4 FHFL, 1x PCIe 2.0 x16 FHFL, 1x PCIe FHFL legacy slot
• Intel® I210 Single port 1GbE (RJ45) Intel® I219LM Single port 1GbE (RJ45)
• 1 M.2 NVMe port, Optional extra M.2 NVMe and SATA3 port

Manufacturer: BOSTON
Item #:BOSTON VENOM 1002-10NP

REQUEST TEST DRIVE

Boston Quattro 12256-T02

BOS-QH2-12256-T02

• 2U 4-Node Air-Cooled
• Dual Socket SP3 supports AMD EPYC™ 7002 Series processors (testing available on a number of CPU SKUs)
• Up to 4TB DDR4 ECC RDIMM 3200MHz memory in 16 DIMM slots
• Supports 8GB to 128GB DIMM options, number, and capacity configurable
• Up to 8x M.2 SSDs per DCB with 1U compute module; Up to 4x M.2 SSDs and 4x hot-swap U.2 NVMe* SSDs with 2U Compute Modules M.2 and U.2 number and capacity configurable
• 2x PCI-E 4.0 x16 (HHHL) slots; 1x SIOM card support (flexible networking)
• 6x Hot-swap 2.5” SATA3 drive bays
• M.2 slot for the boot drive:SATA3/NVMe
• IPMI 2.0 + KVM with dedicated LAN
• 2200W redundant power supplies Titanium level (96%)

Manufacturer: BOSTON
Item #:BOS-QH2-12256-T02

GO TO PRODUCT

Intel S9200WK

LWK2ACBUXXX04

• 2U Half-Width Air-Cooled Compute Module
• Intel® Xeon® Platinum 9200 processors with 48 cores per node
• DDR4 2933 MT/s DIMMS, up to 96x DIMMs per DCB (24 DIMMs per compute module) @ 1DPC
• Supports 8GB to 128GB DIMM options, number, and capacity configurable
• Up to 8x M.2 SSDs per DCB with 1U compute module; Up to 4x M.2 SSDs and 4x hot-swap U.2 NVMe* SSDs with 2U Compute Modules M.2 and U.2 number and capacity configurable
• 3x hot-swap CRPS 2100W (Platinum) or 1600W (Titanium) PSUs
• Integrated 1Gbase-T RJ45 (two ports per compute module), Optional shared 1Gbase-T RJ45 management port chassis card
• 2 x16 Gen3 PCIe* slots per 1U compute module; 4 x16 Gen3 PCIe* slots per 2U compute module for high-speed networking support
• TPM 2.0 (optional); Hot-swap/redundant fans, and PSUs; light path diagnostic LEDs

Manufacturer: Intel
Item #:LWK2AC3P4880A

PRE-RELEASE

IBM Power System AC922

AC922 8335-GTC

• 2U Air-Cooled
• 2x POWER9 with NVLink CPUs 16 cores
• Up to 2 TB, from 16 DDR4 RDIMM Sockets
• 2x SFF (2.5") drive bays, optional NVMe SSD support in PCIe slot
• Processor-to-memory bandwidth of 170 GB/s per socket, 340 GB/s per system
• 4 SXM 2.0 sockets, for NVIDIA Tesla V100 GPU Accelerators with NVLink. 2x PCIe x16 4.0 slots 1x PCIe16x ( x8,x8) 4.0 slot (multi-socket host direct supported) 1x PCIe x4 4.0 slot
• I/O ports 2x USB 3.0, 2x 1 GB Eth, VGA
• Power: 200 V

Manufacturer: IBM
Item #:AC922 8335-GTC

GO TO PRODUCT

NVIDIA DGX-2

TCSDGX2-PB

• 16x NVIDIA Tesla V100 GPUs
• Performance; 2 PetaFLOPS
• GPU Memory - 512GB Total System
• NVIDIA Tensor Cores 10240
• NVIDIA CUDA Cores 81920
• CPU; Dual Intel Xeon Platinum 8168, 2.7GHz, 24 cores
• Max Power Requirements; 10kW
• Storage; 8x 3.84 TB NVMe SSD
• Network; 8X 100Gb/sec | Infiniband/100GigE | Dual 10/25Gb/sec Ethernet
• Ubuntu Linux Host OS

Manufacturer: NVIDIA
Item #:TCSDGX2-PB

Go to Product

Roamer MU-VR

BOS-Roamer-MU-VR

• Multi-User Virtual Reality Turnkey Solution
• Delivered in a 10U wheeled shipping crate
• VMware ESX for virtualisation
• 4x HTC Vive Enterprise
• 4x NVIDIA Quadro P6000 GPUs
• Supermicro optimised server

Manufacturer: Boston
Item #:BOS-Roamer-MU-VR

Go to Product

Flash-IO Talyn

BOS-IX1-1214-01HQ

• Elastic NVMe over fabrics storage utilising Excelero NVMesh
• Delivering a sequential read of 44GB/s using 4MB blocks and a random read of 840k IOPS using 4k blocks
• 100% efficiency
• RAID support
• EDR Infiniband or 100GbE Connectivity with RoCE V2
• Up to millions of IOPS
• Low latency access

Manufacturer: Boston
Item #:BOS-IX1-1214-01HQ

Go to Product

NVIDIA DGX-1

TCSDGX1VHRG-PB

• 8x NVIDIA Tesla V100 GPUs
• Performance; (GPU FP16) 1 Petaflops 170 Teraflops
• GPU Memory - 128GB Total System
• NVIDIA Tensor Cores 5,120
• NVIDIA CUDA Cores 40,960
• CPU; Dual 20-Core Intel Xeon E5-2698 V4 2.2 GHz
• Max Power Requirements; 3,200W
• Storage; 4x 1.92 TB SSD RAID 0
• Network; Dual 10GbE, 4 IB EDR
• Ubuntu Linux Host OS

Manufacturer: NVIDIA
Item #:TCSDGX1VHRG-PB

Go to Product

NVIDIA DGX Station

TCSDGXSB-PB

• 4x NVIDIA Tesla V100 GPUs
• Performance; (GPU FP16) 480 Teraflops
• GPU Memory - 64GB Total System
• NVIDIA Tensor Cores 2,560
• NVIDIA CUDA Cores 20,480
• CPU; Dual 20-Core Intel Xeon E5-2698 V4 2.2 GHz
• Max Power Requirements; 1,500W
• Storage; 3x 1.92 TB SSD RAID 0
• Network; Dual 10Gb LAN

Manufacturer: NVIDIA
Item #:TCSDGXSB-PB

DSS Jovian / Igloo SBB

BOS-IX0-1420-E10T

• 20TB NAS & iSCSI SDS SAN featuring Open-E's JovianDSS
• Delivered as a high availability cluster as standard
• Quad RJ45 - Base-T - 1/10Gbit/s Ethernet ports as standard
• 20 x 2TB Enterprise SAS Disks - 20TB Useable in RAID 10
• 2 x 400GB Enterprise SSD and 1 x 400GB Enterprise SSD's for pool cache acceleration
• Open-E's JovianDSS license & premium support for 3 years

Manufacturer: Boston Limited
Item #:BOS-IX0-1420-E10T

Go to Product

EPYC

BOS-FX1-2164-0T

• 1U Ultra Rackmount Server
• Dual AMD EPYC™ 7000 Series Processors
• Up to 4TB DDR-4 Reg ECC 266MHz Memory
• 32 DIMM Slots
• 8 DDR-4 Channels Per Processor
• 10 Hot Swap SATA3 2.5” HDD Bays

Manufacturer: Boston Limited
Item #:BOS-FX1-2164-0T

Go to Product

ANNA XL (Pascal & Volta)

BOS-VX0-2402-0T

• Deep Learning & HPC GPU Accelerated Compute Solution
• 8 x SXM2 connected NVIDIA P100/V100 GPU/s a in 4U
• NVLink connectivity between GPU's as standard
• Dual Intel Xeon E5-2600 v4 processors, up to 22 cores each
• Up to 3TB DDR-4 Registered ECC Memory
• EDR InfiniBand or Omni-Path interconnect options

Manufacturer: Boston Limited
Item #:BOS-VX0-2402-0T

Go to Product

ANNA (Pascal & Volta)

BOS-VX0-1103-0T

• NVIDIA Pascal Architecture
• NVLINK
• High Density
• Peer-to-Peer GPU communication

Manufacturer: Boston Limited
Item #:BOS-VX0-1103-0T

Go to Product
