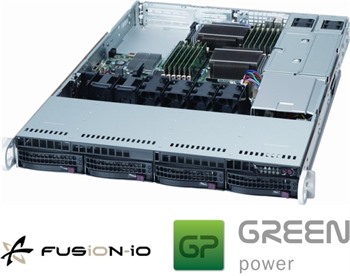

In partnership with Fusion-io Boston provide a variety of server platforms that have been designed to close the performance gap between your processing and your storage. Using a variety of the latest technologies, our platforms provide gigabytes of bandwidth and hundreds of thousands of IOPS all from within a single server platform that has been optimised to take advantage of the latest GPU and CPU based processing technologies.
BIOS Features
ACPI 3.0
PCI 2.2
Plug and Play (PnP)
USB keyboard support
BIOS Type
32MB SPI Flash EEPROM with AMI UEFI BIOS
Buttons
Power On/Off button
System Reset button
UID button
Chipset
Intel 5520 (Tylersburg-36D)
Colour
Black
CPU Family
Intel Xeon
CPU Manufacturer
Intel
CPU Model
E5630
CPU Quantity (Maximum)
2
CPU Series
Intel Xeon E5600
CPU Speed
2.53 GHz
Drive Bays
4 x 3.5" Hot-swap SAS/SATA
Drive Support
SATA
Expansion Slots
1 x (x8) PCI-E 2.0
1 x (x16) PCI-E 2.0
2 x (x4) PCI-E 2.0
Form Factor
1U
GPU Family
Matrox G-Series
GPU Manufacturer
Matrox
GPU Model
Matrox G200eW
HDD's (Installed)
2 x 250GB WD RE3 SATA
LED indicators
2 x Network activity LEDs
Hard drive activity LED
Power status LED
Universal Information (UID) LED
Manufacturer
Boston
Memory (Installed)
48GB DDR3 PC3-10600 (1333MHZ) 240PIN DIMM ECC Registered
Memory (Maximum)
192GB
Memory Speed
1333MHz
Memory Type
DDR3 Registered ECC SDRAM
Network Ports
4
Network Socket
1 x RJ45 Dedicated IPMI LAN port
RJ45
Number of Nodes
1
Peripheral Drives
1 x Fusion-io ioDrive Duo 640GB MLC PCI-E x8
Product Range
Boston GP
Boston GP-ioServer
PSU Output Capacity
700 Watts
PSU Quantity
2
RAID Support (SATA)
RAID 0
RAID 1
RAID 5 (Windows only)
RAID 10
System Cooling
5 x 4cm Counter-rotating fans
