Boston Value Series 370T

   Browse images

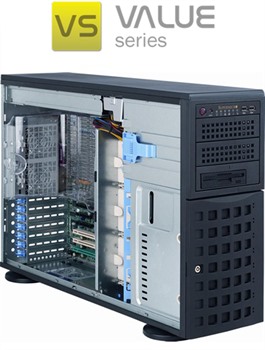

Image for illustration purposes only

Boston Value Series 370T

Manufacturer	Boston Limited
Item #	BOS-VS370T
Stock availability	Built to order

E-mail a friend Request pricing or more information

Continue Browsing
View more products from Boston Limited

• Overview
• Specifications
•  Configure

Overview

The Value Series 370T has a unique tower/4U chassis design that can be modified to suit user needs - it is a flexible option that can be customized for floor standing or rack mount use.

Reduced power and energy efficiency has been catered for exceptionally well with the Value Series 370T being one of the industry’s first server solutions providing 94%+ Platinum Level power efficiency; significantly reducing the TCO of running this server.

Using Microsoft Windows Server 2008 R2 Standard, the Value Series 370T supports multiple users and is able to enhance your business with a dependable and affordable solution.

Key Features

1. High Value Low Cost alternative to Tier 1 platforms
2. Energy efficient design optimized for power cooling efficiency – providing reduced operational costs and environmental impact
3. Worldwide on-site warranty packages available
4. Full support for dual processors to allow for solutions to be easily expanded to suit application requirements
5. Enterprise class manufacture and construction assuring high performance and stability with 24/7 uptime

Specifications

Backplane	SAS / SATA Backplane w/ Enclosure Management
BIOS Features	ACPI 1.0
	ACPI 2.0
	ACPI 3.0
	PCI 2.2
	Plug and Play (PnP)
	USB keyboard support
BIOS Type	32Mb SPI Flash EEPROM with AMI BIOS
Buttons	Power On/Off button
	System Reset button
Chipset	Intel 5520 (Tylersburg-36D)
Chipset I/O Controller	ICH10R
Colour	Black
CPU Family	Intel Xeon
CPU Manufacturer	Intel
CPU Model	E5630
CPU Quantity (Installed)	1
CPU Quantity (Maximum)	2
CPU Series	Intel Xeon 5600
CPU Socket	Intel LGA 1366
CPU Speed	2.53 GHz
Drive Bays	8 x Hot-swap SAS2
Drive Support	SAS
	SATA
Error Detection	Corrects single-bit errors
	Detects double-bit errors (using ECC memory)
	Supports Intel x4 and x8 SDDC
Expansion Slots	1 x (x4) PCI-E
	1 x (x4) PCI-E 2.0
	3 x (x8) PCI-E 2.0
Form Factor	4U Rackmount / Tower
GPU Family	Matrox G-Series
GPU Manufacturer	Matrox
GPU Model	Matrox G200eW
HDD's (Installed)	1 x 500GB WD RE3 SATA
Input/Output	1 x PS/2 keyboard port
	1 x PS/2 mouse port
	1 x Serial Port
	6 x SATA ports
	8 x 6Gbps SAS / SATA ports
	8 x USB 2.0 ports
LED indicators	2 x Network activity LEDs
	Fan Fail LED
	Hard drive activity LED
	Power fail LED
	System Overheat LED
Manufacturer	Boston
Memory (Installed)	6GB DDR3 1333MHz 240PIN DIMM ECC SDRAM
Memory (Maximum)	192GB
Memory Slots	12
Memory Speed	1333MHz
Network Adapter	2 x Intel 82574L
Network Ports	2
Network Socket	(1x RJ45 Dedicated IPMI LAN port)
	RJ45
Number of Nodes	1
Peripheral Drives	1 x 5.25" Bay for Floppy Drive
	1 x Slim DVD-RW SATA drive
	2 x 5.25" Peripheral Drive Bays
Product Range	Boston VS
PSU Output Capacity	920 Watts
RAID Support (SAS)	RAID 0
	RAID 1
	RAID 10
RAID Support (SATA)	RAID 0
	RAID 1
	RAID 5 (Windows only)
	RAID 10
SATA Controller	Intel ICH10R
Software (Installed)	Microsoft Windows Server 2008 R2 Foundation
System Cooling	1 x 9cm PWM fan
	2 x 8cm Hot-swappable PWM Cooling Fans
	2 x Active heatsink w/ heatpipe

Configure

Your price: £1,906.72

Lease from only £49.35 per month

Processor

• Intel Xeon E5506 2.13GHz (Gainestown)
• Intel Xeon E5620 2.4GHz (Westmere-EP)
• Intel Xeon E5630 2.53GHz (Westmere-EP) [1 provided as standard]
• Intel Xeon E5640 2.66GHz (Westmere-EP)
• Intel Xeon E5645 2.4GHz (Westmere-EP)
• Intel Xeon Processor E5649 2.53GHz (Westmere)
• Intel Xeon L5609 1.86GHz (Westmere-EP)
• Intel Xeon L5618 1.87GHz (Westmere-EP)
• Intel Xeon L5630 2.13GHz (Westmere-EP)
• Intel Xeon L5638 2.00GHz (Westmere-EP)
• Intel Xeon L5640 2.26GHz (Westmere-EP)
• Intel Xeon X5650 2.66GHz (Westmere-EP)
• Intel Xeon X5660 2.8GHz (Westmere-EP)
• Intel Xeon X5667 3.06GHz (Westmere-EP)
• Intel Xeon X5670 2.93GHz (Westmere-EP)
• Intel Xeon Processor X5675 3.06GHz (Westmere)
• Intel Xeon X5677 3.46GHz (Westmere-EP)
• Intel Xeon X5680 3.33GHz (Westmere-EP)
• Intel Xeon Processor X5687 3.60GHz (Westmere)

Quantity: 1 2

---

System Validated Memory

• 3 x Supermicro 2GB Reg-ECC DDR3-1333 Low Profile [3 provided as standard]
• 3 x Supermicro 4GB Reg-ECC DDR3-1333 Low Profile (Hynix)
• 3 x Supermicro 8GB Reg-ECC DDR3-1333 RoHS
• 6 x Supermicro 2GB Reg-ECC DDR3-1333 Low Profile
• 6 x Supermicro 4GB Reg-ECC DDR3-1333 Low Profile (Hynix)
• 6 x Supermicro 8GB Reg-ECC DDR3-1333 RoHS
• 12 x Supermicro 2GB Reg-ECC DDR3-1333 Low Profile
• 12 x Supermicro 4GB Reg-ECC DDR3-1333 Low Profile (Hynix)
• 12 x Supermicro 8GB Reg-ECC DDR3-1333 RoHS

---

Hot-Swappable Storage

• Western Digital RE4 500GB SATA [1 provided as standard]
• Western Digital RE4 1TB SATA
• Western Digital RE4 2TB SATA
• Western Digital VelociRaptor 600GB SATA
• Seagate Cheetah NS 450GB SAS
• Seagate Cheetah NS.2 600GB SAS
• Seagate Cheetah 15K.7 300GB SAS
• Seagate Cheetah 15K.7 450GB SAS
• Seagate Cheetah 15K.7 600GB SAS

Quantity: 1 2 3 4 5 6 7 8

---

Operating System

Windows Server 2008 R2 builds on the award-winning foundation of Windows Server 2008, expanding existing technology and adding new features to enable IT professionals to increase the reliability and flexibility of their server infrastructures.

Please note: Microsoft Windows Server 2008 R2 Foundation supports only one CPU. If you wish to upgrade to a dual CPU configuration in future you will also need to upgrade your operating system to Microsoft Windows Server 2008 R2 Standard, or above.

• Microsoft Windows Server 2008 R2 Foundation (1 CPU) [Provided as standard]
• Microsoft Windows Server 2008 R2 Standard (1-4 CPU, 5 CAL)
• Microsoft Windows Server 2008 R2 Enterprise (1-8 CPU, 10 CAL)
• Microsoft Windows Web Server 2008 R2 (1-4 CPU)

---

Warranty

• 3 Years Return to Base Warranty [Provided as standard]
• 3 Years Warranty – Next Business Day Service

---
