Overview

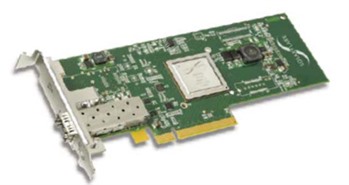

The Solarflare® SFN5152F single-port 10G Ethernet SFP+ midrange server adapter combines
excellent performance and exceptional 10GbE value for data center, enterprise, SMB, high
performance computing, and cloud computing environments.
The SFN5152F is designed to address issues facing data center managers today.
Equipped to handle the application loads of the latest
multi-core processors, the SFN5152F also delivers unmatched power efficiency for the
consolidation and deployment of high-density servers.
The SFN5152F supports data networking with concurrent support of iSCSI and
NAS traffic – while remaining true to the need for cost effective, power-efficient
and highperformance network I/O.
Key Features
- I/O Virtualization 64 guest OS protected vNICs
- PCI Express PCIe 2.0 @ 5.0GT/s for full, 20 Gbps bi-directional bandwidth
- 10 Gigabit Ethernet Supports high-performance 10GbE
- SFP+ Support Supports optical & copper SFP/SFP+ modules; Direct-Attach, Fiber (10G or 1G), 1G/10G combo; 1000BASE-T SFP
- Low Latency Cut-through architecture/intelligent interrupt coalescing
- Remote Boot Supports PXE, iSCSI boot
- Management ACPI v3.0, RMII, SNMP, SMBus, IPMI
- OS Support Windows Server 2003, 2008, 2008R2; Linux; RHEL5/6; SLES10/11; Solaris 10 (x86)
