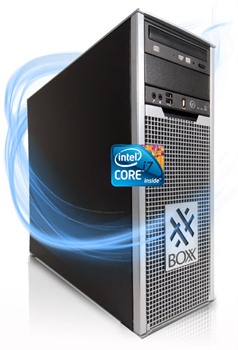

BOXX 3DBOXX 4860 Base unit

Product Overview

£308.24 (ex VAT) | £369.88 (inc VAT)

Promotion - 75% off sale (Normally £1,232.94)


4 In Stock

BOXX 3DBOXX 4860 Base unit

The 3DBOXX 4860 is the ideal solution for the most demanding of CG artists who require fast, energy-efficient and reliable workstations.

Powered by the revolutionary technology of a six core or quad core performance-enhanced, Intel Core i7 processor (up to 3.46 GHz), the 3DBOXX 4800 Series features the most powerful single processor, 2 GPU workstations ever designed.

Built for Speed

The 3DBOXX 4800 series rival the speed of our competitors' standard dual processor workstations and are capable of reaching core speeds of up to 3.46 GHz in turbo mode.


All workstations in the 3DBOXX 4800 Series are tested by BOXXlabs for stability with professional software applications and feature:

  • Hyperthreading providing up to 8 virtual cores for multitasking with single-threaded applications
  • NVIDIA Quadro FX, GeForce, Tesla or ATI FirePro professional graphics cards
  • 64-bit scalability, extra memory bandwidth and next generation PCI Express 2
  • Chassis designed for quiet operation in creative environments

The 3DBOXX 4800 series features a range of available performance level options delivering astounding single processor power for professional software applications.


Key Features

Six Core or Quad Core Intel Core i7 Processor Up to 2 NVIDIA Quadro FX Family, GeForce, NVIDIA Telsa or ATI FirePro Up to 12 TB Local Storage 32 or 64-bit Microsoft Windows and Linux


Add to Cart Request more information Send to a friend View all workstations

  • Chipset

    Intel X58 (Tylersburg)

  • Chipset I/O Controller


  • Colour


  • CPU Manufacturer


  • CPU Series

    Intel Core i7

  • CPU Speed

    3.46 GHz

  • Drive Bays

    2 x 5.25" External
    6 x 3.5" Internal

  • Drive Support


  • Expansion Slots

    2 x PCI slots
    3 x (x1) PCI-E 2.0
    3 x PCI-E 2.0 x16 slots (using x16/8x/8x or x16/x16/x1)

  • Form Factor


  • Front Panel I/O

    1 x Audio out
    1 x IEEE 1394a (Firewire) Port
    1 x Microphone
    4 x USB Ports

  • Input/Output

    1 x S/PDIF Digital Output
    1 x S/PDIF Optical Port
    2 x E-SATA ports
    2 x SATA 6Gb/s ports
    2 x USB 3.0 ports
    4 x USB 2.0 / 1.1 ports
    6 x SATA 3Gb/s ports

  • Manufacturer

    BOXX Technologies

  • Memory (Maximum)


  • Memory Slots


  • Memory Speed


  • Memory Type


  • Network Adapter

    1 x Gigabit Ethernet port

  • Network Ports


  • Network Socket


  • Product Range

    BOXX 3DBOXX 4860

  • PSU Output Capacity

    620 Watts

  • RAID Support (SATA)

    RAID 0
    RAID 1

  • SATA Controller

    Intel ICH10R

  • System Cooling

    Air Cooled
