Supermicro SuperServer 6025B-TR+V (Silver)

Product Overview

£1,227.37 (ex VAT) | £1,472.84 (inc VAT)

SYS-6025B-TR+V

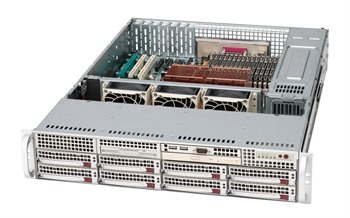

Supermicro SuperServer 6025B-TR+V (Silver)

Designed for optimal performance, the SuperServer 6025 series support the maximum frequency quad-core Xeon series processors in a 2U form-factor. These servers are ideal for network infrastructure, front-end enterprise, and minimal-downtime cluster server systems.

Based on the X7DBE+ board, supporting upto 64GB of DDR2 RAM, 2 (x8) PCI-Express slot and a dual port Internet Gigabit Ethernet controller, this server delivers power and performance at a very affordable price. With 8 x hot-swap drive bays and a 700W high-efficiency power supply, this is an exceptional server that will match your processing needs.



Key Features

Intel 5000P (Blackford) Chipset Dual Intel 64-bit Xeon Quad-Core or Dual-Core, with 667 / 1066 / 1333 MHz FSB Up to 64GB DDR2 667 & 533 SDRAM Fully Buffered DIMM (FB-DIMM) 2 (x8) & 1 (x4) PCI-Express, 2x 64-bit 133MHz PCI-X, 1x 64-bit 100MHz PCI-X Low-profile Expansion Slots Intel (ESB2/Gilgal) 82563EB Dual-port Gigabit Ethernet Controller 8 x 3.5" Hot-swap Drives Trays, 6x SATA Hard Drives Supported 700W High-efficiency Redundant Power Supply



Request more information Send to a friend View all servers

  • Backplane

    1 x 2U SATA backplane

  • BIOS Features

    ACPI 1.0
    DMI 2.1
    Hardware BIOS Virus protection
    PCI 2.2
    Plug and Play (PnP)
    SMBIOS 2.3
    USB keyboard support

  • BIOS Type

    8MB Flash EEPROM with Phoenix

  • Buttons

    Power On/Off button
    System Reset button

  • Chipset

    Intel 5000P (Blackford)

  • Chipset I/O Controller

    ESB2
    MCH
    PXH

  • Colour

    Silver

  • CPU Family

    Intel Xeon

  • CPU Manufacturer

    Intel

  • CPU Quantity (Maximum)

    2

  • CPU Series

    Intel Xeon 5000
    Intel Xeon 5100
    Intel Xeon 5200
    Intel Xeon 5300
    Intel Xeon 5400

  • Drive Bays

    8 x 3.5" Hot-swap SATA

  • Drive Support

    IDE
    SATA

  • Expansion Slots

    1 x (x4) PCI-E (using x8) slot
    2 x (x8) PCI-E

  • Form Factor

    2U

  • GPU Family

    ATI Radeon ES1000

  • GPU Manufacturer

    AMD (ATI)

  • GPU Memory Sizes

    16MB

  • GPU Model

    Radeon ES1000

  • Input/Output

    1 x ECP / EEP Parallel Port
    1 x EIDE channel
    1 x Floppy controller
    1 x PS/2 keyboard port
    1 x PS/2 mouse port
    1 x Serial Header
    1 x Serial Port
    1 x VGA port
    5 x USB 2.0 / 1.1 ports
    6 x SATA ports

  • LED indicators

    CPU / System Overheat LED

  • Management

    IPMI 2.0
    Optional: AOC-SIMLP-3(+)
    Optional: AOC-SIMLP-B(+)

  • Manufacturer

    Supermicro

  • Memory (Maximum)

    64GB

  • Memory Sizes

    1GB
    2GB
    4GB
    512MB

  • Memory Slots

    16

  • Memory Speed

    533MHz
    667MHz

  • Memory Type

    DDR2 FB-DIMM SDRAM

  • Memory Voltage

    1.5V (AMB)
    1.8V

  • Network Adapter

    Intel 82563EB Dual-Port Gigabit

  • Network Ports

    2

  • Network Socket

    RJ45

  • Number of Nodes

    1

  • Peripheral Drives

    Slim 1.44MB Floppy Drive (Optional)
    Slim 8x DVD, 24x CD, DVD-ROM Drive

  • Power Factor Correction

    Active PFC

  • PSU Output Capacity

    700 Watts

  • RAID Support (SATA)

    RAID 0
    RAID 1
    RAID 5
    RAID 10

  • SATA Controller

    Intel ESB2 SATA2 3Gbps

  • System Bus

    667MHz
    1066MHz
    1333MHz

  • System Cooling

    1 x Air Shroud
    3 x 80mm 6300 RPM fans
