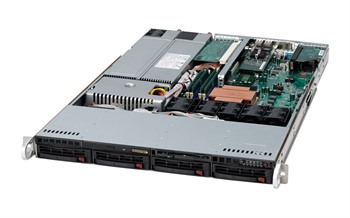

Supermicro SuperServer 5015P-8RB (Black)

Product Overview

£1,102.51 (ex VAT) | £1,323.01 (inc VAT)

SYS-5015P-8RB


Supermicro SuperServer 5015P-8RB (Black)

Designed by industry leaders Supermicro, the 5015P is a server capable of a wide variety of tasks. Supporting a wide range of Pentium and Celeron processors, these servers offer the very best in performance, power-efficiency and reliability.

Based on the PDSMP-8 mainboard and zero channel RAID support , you’re sure to get the most from this package. With Intel dual PCI-E gigabit controllers, an IPMI slot and a x4 PCI-E slot, 4 x 3.5” Ultra320 SCSI hot-swap drive bays and a 400W cold-swap power supply, this feature packed server offers the latest technology in a sleek form factor at an affordable price.



Key Features

Intel E7230 (Mukilteo) Smithfield chipset ICH7R + PXH + Intel® 82573V Intel® Pentium® D, Pentium® 4 Extreme Edition, Pentium 4, Pentium Extreme Edition & Celeron D in LGA775 Package(FSB 1066/800/533) Up to 8GB unbuffered, ECC DDR2 667/533/400 SDRAM 1 (x4) PCI-Express Slot OR 1x 64-bit 133MHz PCI-X Slot, 1x 64-bit 100MHz PCI-X Slot (low-profile) 1x IPMI Slot 2x Intel® 82573V (Tekoa) PCI-e Gigabit LAN Ports Zero Channel RAID Support 4 x 3.5" Ultra320 SCSI Hot-swap Drive Bays Redundant 400W Hot-swap Power Supply with I2C for Remote Management



Request more information Send to a friend View all servers

  • Backplane

    Single Channel SCSI Backplane with SAF-TE

  • BIOS Features

    DMI 2.3
    PCI 2.2
    PCI-X 1.0
    Plug and Play (PnP)
    USB keyboard support

  • BIOS Type

    8MB Flash EEPROM

  • Buttons

    Power On/Off button
    UID button

  • Chipset

    Intel E7230 (Mukilteo)

  • Chipset I/O Controller

    ICH7R
    PXH

  • Colour

    Black

  • CPU Family

    Intel Celeron
    Intel Pentium

  • CPU Manufacturer

    Intel

  • CPU Quantity (Maximum)

    1

  • CPU Series

    Intel Celeron D
    Intel Pentium 4
    Intel Pentium 4 Extreme
    Intel Pentium D
    Intel Pentium Extreme

  • Drive Bays

    8 x 3.5" Hot-swap SCA U320/160

  • Drive Support

    IDE
    SCSI

  • Expansion Slots

    1 x (x4) PCI-E
    1 x UIO

  • Form Factor

    1U

  • GPU Family

    ATI Radeon Rage

  • GPU Manufacturer

    AMD (ATI)

  • GPU Memory Sizes

    8MB

  • GPU Model

    Radeon Rage XL

  • Input/Output

    1 x EIDE channel
    1 x Floppy controller
    1 x PS/2 keyboard port
    1 x PS/2 mouse port
    1 x Serial Header
    1 x Serial Port
    1 x VGA port
    2 x USB 2.0 ports

  • LED indicators

    2 x Network activity LEDs
    Hard drive activity LED
    Power fail LED
    Power status LED
    System Overheat LED
    Universal Information (UID) LED

  • Manufacturer

    Supermicro

  • Memory (Maximum)

    8GB

  • Memory Sizes

    1GB
    2GB
    256MB
    512MB

  • Memory Slots

    4

  • Memory Speed

    400MHz

  • Memory Type

    DDR2 Unbuffered ECC SDRAM

  • Memory Voltage

    1.8V

  • Network Adapter

    Intel 82573V Gigabit PCI-E

  • Network Ports

    2

  • Network Socket

    RJ45

  • Number of Nodes

    1

  • Peripheral Drives

    Slim 8x DVD-ROM Drive
    TEAC 3.5" 1.44MB Floppy Drive

  • Power Factor Correction

    Active PFC

  • PSU Output Capacity

    400 Watts

  • System Bus

    533MHz
    800MHz
    1066MHz

  • System Cooling

    3 x 4cm 12,000 RPM Nidec Dual Blade Fans
    5 x 4cm 12,000 RPM Nidec Dual Blade Fans
