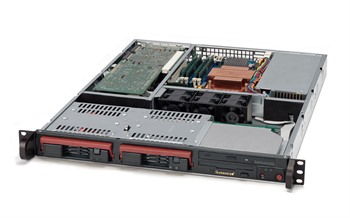

Supermicro SuperServer 5015M-T+B (Black)

Product Overview

£570.37 (ex VAT) | £684.44 (inc VAT)

SYS-5015M-T+B


Supermicro SuperServer 5015M-T+B (Black)

Designed by industry leaders Supermicro, the 5015M is a server capable of a wide variety of tasks. Supporting a wide range of Xeon, Pentium and Celeron processors, these servers offer the very best in performance, power-efficiency and reliability.

Based on the PDSMi+ mainboard and with onboard ATI RageXL graphics, you’re sure to get the most from this package. With Intel dual PCI-E gigabit controllers, a x8 PCI-E slot, 2 x 3.5” hot-swap SATA drive bays and a 300W high efficiency power supply, this feature packed server offers the latest technology in a sleek form factor at an affordable price.



Key Features

Intel 3000 (Mukilteo-2) Chipset Xeon 3200/3000 Series, Pentium D, Pentium 4, Pentium Extreme Edition, & Celeron D in LGA775 Package (FSB 1066/800/533) Up to 8GB unbuffered ECC / non-ECC DDR2 667/533MHz SDRAM 1 (x8) PCI-Express or 1x 64-bit 133MHz PCI-X 1x Intel 82573L PCI-e Gigabit LAN, 1x Intel 82573V PCI-e Gigabit LAN On board ATI ES1000 Graphics 2x 3.5" Hot-swap SATA Drive Bays 300W Power Supply



Request more information Send to a friend View all servers

  • Backplane

    2-Port SATA Backplane

  • BIOS Features

    ACPI 1.0
    DMI 2.3
    PCI 2.2
    Plug and Play (PnP)
    SMBIOS 2.3
    USB keyboard support

  • BIOS Type

    8MB Flash EEPROM with Phoenix

  • Buttons

    Power On/Off button
    System Reset button

  • Chipset

    Intel 3000 (Mukilteo)

  • Chipset I/O Controller

    ICH7R
    PXH-V

  • Colour

    Black

  • CPU Family

    Intel Celeron
    Intel Core2
    Intel Pentium
    Intel Xeon

  • CPU Manufacturer

    Intel

  • CPU Notes

    Does not support Q9000, E8000, E7000, E5000 series or 45nm CPU

  • CPU Quantity (Maximum)

    1

  • CPU Series

    Intel Celeron 400
    Intel Celeron E1000
    Intel Core2 Duo
    Intel Core2 Extreme
    Intel Core2 Quad
    Intel Pentium 4
    Intel Pentium D
    Intel Pentium E2000
    Intel Pentium Extreme
    Intel Xeon 3000
    Intel Xeon 3200

  • Drive Bays

    2 x 3.5" Hot-swap SATA

  • Drive Support

    IDE
    SATA

  • Expansion Slots

    1 x (x8) PCI-Express Slot (via Riser Card) OR 1 x 64-bit PCI-X 133MHz Slot (via Riser Card)

  • Form Factor

    1U

  • GPU Family

    ATI Radeon ES1000

  • GPU Manufacturer

    AMD (ATI)

  • GPU Memory Sizes

    16MB

  • GPU Model

    Radeon ES1000

  • Input/Output

    1 x ECP / EEP Parallel Header
    1 x EIDE channel
    1 x Floppy controller
    1 x PS/2 keyboard port
    1 x PS/2 mouse port
    1 x Serial Header
    1 x Serial Port
    1 x VGA port
    4 x SATA ports
    6 x USB 2.0 / 1.1 ports

  • LED indicators

    +5V Standby Alert LED
    CPU / System Overheat LED
    Suspend-state indicator LED

  • Management

    IPMI 2.0
    Optional: AOC-IMPI20-E

  • Manufacturer

    Supermicro

  • Memory (Maximum)

    8GB

  • Memory Sizes

    1GB
    2GB
    256MB
    512MB

  • Memory Slots

    4

  • Memory Speed

    533MHz
    667MHz

  • Memory Type

    DDR2 Unbuffered ECC SDRAM
    DDR2 Unbuffered Non-ECC SDRAM

  • Memory Voltage

    1.8V

  • Network Adapter

    Intel 82573L Gigabit PCI-E
    Intel 82573V Gigabit PCI-E

  • Network Ports

    2

  • Network Socket

    RJ45

  • Number of Nodes

    1

  • Peripheral Drives

    3.5" 1.44MB Floppy Drive

  • Power Factor Correction

    Active PFC

  • PSU Output Capacity

    300 Watts

  • RAID Support (SATA)

    RAID 0
    RAID 1
    RAID 5
    RAID 10

  • SATA Controller

    Intel ICH7R SATA2 3Gbps

  • System Bus

    533MHz
    800MHz
    1066MHz

  • System Cooling

    3 x 3-pin Counter-rotating Cooling Fans
