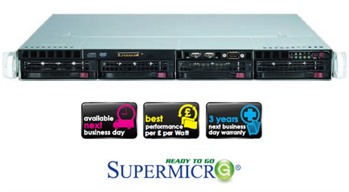

Product Overview
With the current push towards cloud computing there are a lot of design considerations and choices one has to make when implementing the platform of which hardware makes up a significant portion of the solution. The RX-1240i is a solid choice providing local expandable storage, excellent memory capabilities and greener power supplies. This means you will run a cost-efficient platform from the beginning.
The Cloud Server
Perfect for use as a Cloud Server the RX-1240i ticks all the boxes
With the current push towards cloud computing there are a lot of design considerations and choices one has to make when implementing the platform of which hardware makes up a significant portion of the solution. The RX-1240i is a solid choice providing local expandable storage, excellent memory capabilities and greener power supplies. This means you will run a cost-efficient platform from the beginning.
Whilst cloud environments don't require a high level of fault tolerance, since your cloud software should provide self-healing capabilities, we do provide the RX-1240i with redundant power units. We think this is a sensible option to help maximise your data-center personnel time which saves cost in the long term.
Running on the latest Intel® Xeon® processor E5-2600 the RX-1240i yields a performance boost of up to 80%* over previous generation platforms.
Powered by Supermicro, the Ready To Go server range are complete systems that incorporate the latest advancements in technology to meet the demands of today’s data-driven world. Just add software.
Click here for more information about the Supermicro Ready To Go range
*http://www.intel.com/cd/channel/reseller/apac/eng/494771.htm?prn
Key Features
Intel® Xeon® processor E5-2600 family; QPI up to 8GT/s Add on card support: 2x PCI-E 3.0 x16 Full-height, Half-length slots Up to 512GB DDR3 1600MHz ECC Registered DIMM; 16x DIMM sockets 4x Hot-swap 3.5" SAS/SATA HDD Bays for Customizable Storage 700W Redundant Power Supplies 80 PLUS, Gold Level Certified Intel® i350 Dual port Gigabit Ethernet Controller; 2x LAN ports
-
Chipset
Intel C602
-
CPU Family
Intel Xeon
-
CPU Manufacturer
Intel
-
CPU Model
E5-2603
-
CPU Quantity (Installed)
1
-
CPU Quantity (Maximum)
2
-
CPU Series
Intel Xeon E5-2600
-
CPU Speed
1.8 GHz
-
Drive Bays
4 x 3.5" Hot-swap SAS/SATA
-
Drive Support
SAS
SATA
-
Expansion Slots
2 x (x16) PCI-E 3.0 Full-height, Half-length slots
-
Form Factor
1U
-
HDD's (Installed)
1 x 500GB SATA
-
Manufacturer
Supermicro
-
Memory (Installed)
8GB
-
Memory (Maximum)
512GB
-
Memory Slots
16
-
Memory Speed
1333MHz
-
Memory Type
DDR3 ECC Registered DIMM
-
Network Adapter
Intel i350 Dual Port Gigabit Ethernet
-
Network Ports
2
-
Product Range
Supermicro Ready To Go
-
PSU Output Capacity
700 Watts
-
Redundant Power Supply?
Yes
Download the Data Sheet
Created to provide you with in depth information on our bespoke solutions, our product datasheets give you all of the necessary technical information of a product.
Download Data Sheet
