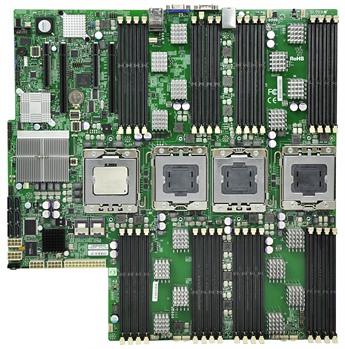

Built by award winning industry experts Supermicro, the X8QBE-F is the perfect motherboard for those looking for a powerful desktop computing solution.
Capable of supporting Intel's powerful Xeon 7500 (Nehalem-EX) series processors in the dual 1567-pin LGA package, this board can hold upto 256GB of dual channel DDR3 SDRAM. With dual Intel Gigabit LAN ports, onboard Matrox G200eW graphics, 2 x16 PCI-E expansion slots and a built in SATA2 controller offering support for upto 6 SATA drives at 3.0Gbps, this is a must have for those seeking to build high performing desktop systems.
Key Features
Intel Xeon processor 7500 series, with QPI up to 6.4 GT/s Intel 7500 (Boxboro-EX) Chipset Up to 256GB DDR3 1066/978/800MHz ECC Registered DIMM Intel 82576 Dual-Port Gigabit Ethernet Controller 6x SATA2 (3 Gbps) Ports via ICH10R Controller 2 (x16) PCI-E 2.0 or 1 (x16) PCI-E 2.0 + 2 (x8) PCI-E 2.0 or 4 (x8) PCI-E 2.0 slots Integrated Matrox G200eW Graphics Integrated IPMI 2.0 with Dedicated LAN
Request more information Send to a friend View all motherboards
-
BIOS Features
ACPI 1.0
ACPI 2.0
ACPI 3.0
PCI 2.2
Plug and Play (PnP)
USB keyboard support
-
BIOS Type
32MB SPI Flash EEPROM with AMI UEFI BIOS
-
Chipset
Intel 7500 (Boxboro-EX)
-
Chipset I/O Controller
ICH10R
-
CPU Family
Intel Xeon
-
CPU Manufacturer
Intel
-
CPU Quantity (Maximum)
4
-
CPU Series
Intel Xeon 7500
-
CPU Socket Type
Intel LGA 1567
-
Drive Support
SATA
-
Error Detection
Corrects single-bit errors
Detects double-bit errors (using ECC memory)
Supports Intel x4 and x8 SDDC
-
Expansion Slots
2 (x8) PCI-E 2.0 or 4 (x8) PCI-E 2.0 slots
2 (x16) PCI-E 2.0 or 1 (x16) PCI-E 2.0 +
-
Form Factor
Proprietary
-
GPU Family
Matrox G-Series
-
GPU Manufacturer
Matrox
-
GPU Model
Matrox G200eW
-
Input/Output
1 x Serial Header
1 x Serial Port
1 x VGA port
3 x RJ45 LAN ports
5 x USB 2.0 ports
6 x SATA ports
8 x SAS / SATA ports
-
Management
IPMI 2.0
Winbond WPCM450 BMC
-
Manufacturer
Supermicro
-
Memory Sizes
256MB
-
Memory Slots
32
-
Memory Speed
800MHz
978MHz
1066MHz
-
Memory Type
DDR3 Registered ECC SDRAM
DDR3 Unbuffered ECC SDRAM
-
Memory Voltage
1.5V
1.35V
-
Network Adapter
Intel 82576 Dual-Port Gigabit
-
Network Ports
2
-
Network Socket
1 x RJ45 Dedicated IPMI LAN port
RJ45
-
Packaging
Bulk
-
Power Management
ACPI Power Management
ACPM Power Management
-
RAID Support (SATA)
RAID 0 (Linux)
RAID 0 (Windows only)
RAID 1 (Linux)
RAID 1 (Windows only)
RAID 5 (Windows only)
RAID 10 (Linux)
RAID 10 (Windows only)
-
SATA Controller
Intel ICH10R
-
Software Management
Optional IPMI 1.5
Optional IPMI 2.0
SuperDoctor III
-
System Bus
QPI (up to 6.4 GT/s)
