Product Overview
£346.78 (ex VAT) | £416.13 (inc VAT)
Promotion - 25% off sale (Normally £462.37)

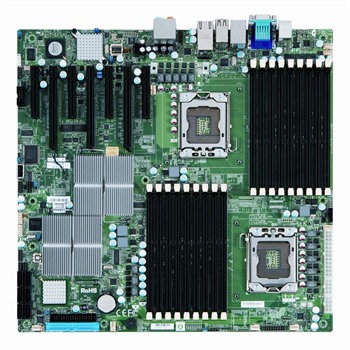

Built by industry leaders Supermicro, the X8DAH+-F is the perfect motherboard of choice for high end computing. Providing the ultimate in power and performance, this is a must have for those who need the edge in processing.
With support for Intel Xeon 5600/5500 series processors and capable of supporting a massive 192GB of DDR3 RAM, this will quickly handle even the most difficult of tasks. By using the high performance Intel 5520 Tylersburg chipset, this board can achieve an astonishing 6.4 GT/s of raw data transfer. Add in an 6-port SATA controller and 2 (x16) PCI-E 2.0 slots and this becomes a must buy for the discerning user looking to create a world class workstation or server solution.
Key Features
Intel Xeon processor 5600/5500 series, with QPI up to 6.4 GT/s Dual Intel 5520 (Tylersburg) Chipsets Up to 192GB DDR3 1333/1066/800MHz ECC Registered DIMM / 48GB Unbuffered DIMM Intel 82576 Dual-port Gigabit Ethernet Controller 6x SATA2 (3 Gbps) Ports via ICH10R Controller 2 (x16) PCI-E 2.0, 4 (x8) PCI-E 2.0 (in x 16 slot), 1(x4) PCI-E slot Realtek ALC883 7.1 HD Audio 2x IEEE 1394a Ports Integrated IPMI 2.0 with Dedicated LAN
Add to Cart Request more information Send to a friend View all motherboards
-
Audio
Realtek ALC883 High Definition 7.1 Channel Audio
-
BIOS Features
ACPI 1.0
ACPI 2.0
ACPI 3.0
PCI 2.2
Plug and Play (PnP)
USB keyboard support
-
BIOS Type
32MB SPI Flash EEPROM with AMI UEFI BIOS
-
Chipset
Intel 5520 (Tylersburg-36D)
-
Chipset I/O Controller
ICH10R
IOH-36D
-
CPU Family
Intel Xeon
-
CPU Manufacturer
Intel
-
CPU Quantity (Maximum)
2
-
CPU Series
Intel Xeon 5500
Intel Xeon 5600
-
CPU Socket Type
Intel LGA 1366
-
Drive Support
IDE
SATA
-
Error Detection
Corrects single-bit errors
Detects double-bit errors (using ECC memory)
Supports Intel x4 and x8 SDDC
-
Expansion Slots
1 x (x4) PCI-E
2 x (x16) PCI-E 2.0
4 x (x8) PCI-E 2.0 slots (1 in x16 slot)
-
Form Factor
Extended ATX
-
GPU Family
Matrox G-Series
-
GPU Manufacturer
Matrox
-
GPU Model
Matrox G200eW
-
Input/Output
1 x EIDE channel
1 x Floppy controller
1 x IEEE 1394 header
1 x PS/2 keyboard port
1 x PS/2 mouse port
1 x RJ45 Dedicated IPMI LAN port
1 x Serial Header
1 x Serial Port
1 x VGA port
2 x IEEE 1394 headers
6 x SATA ports
12 x USB 2.0 ports
-
Management
IPMI 2.0
-
Manufacturer
Supermicro
-
Memory (Maximum)
192GB
-
Memory Sizes
1GB
2GB
4GB
8GB
16GB
-
Memory Slots
18
-
Memory Speed
800MHz
1066MHz
1333MHz
-
Memory Type
DDR3 Registered ECC SDRAM
DDR3 Unbuffered Non-ECC SDRAM
-
Memory Voltage
1.5V
1.35V
-
Network Adapter
Intel 82576 Dual-Port Gigabit
-
Network Ports
2
-
Network Socket
RJ45
-
Packaging
Bulk
-
Power Management
ACPI Power Management
ACPM Power Management
-
RAID Support (SATA)
RAID 0
RAID 1
RAID 5
RAID 10
-
SATA Controller
Intel ICH10R
-
Software Management
Optional IPMI 1.5
Optional IPMI 2.0
SuperDoctor III
-
System Bus
QPI (up to 6.4 GT/s)
-
