Supermicro X7DWN+

Product Overview

£344.25 (ex VAT) | £413.10 (inc VAT)

Promotion - 25% off sale (Normally £459.00)

MBD-X7DWN+-O

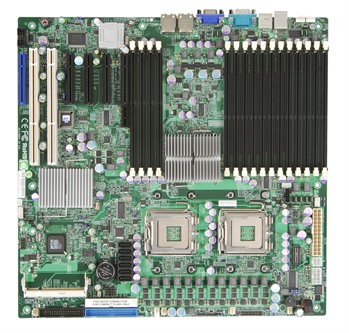

Supermicro X7DWN+

Designed and manufactured by industry leaders Supermicro, the X7DWN UIO board is the only choice for those seeking to create the ultimate workstation, delivering leading edge performance and power in a sleek and streamlined package.

Based on the Intel 5400 Seaburg chipset and supporting upto 128GB of DDR2 RAM, this board can handle Quad and Dual core 64-bit Xeons giving you maximum performance for all your processing needs. With dual port ethernet controllers, ATI ES1000 graphics with 32 MB video memory and 6 SATA 2 ports via an ESB2 controller, this incredibly versatile and adaptable mainboard will provide outstanding performance for whatever your server or workstation needs.



Key Features

Dual Intel® 64-bit Xeon® Quad-Core or Dual-Core, with 1600 / 1333 / 1066 MHz FSB Intel® 5400 (Seaburg) Chipset Up to 128GB DDR2 800* / 667 / 533 SDRAM Fully Buffered DIMM (FB-DIMM) Intel® 82575EB Dual-port Gigabit Ethernet Controller 6x SATA 3.0Gbps Ports via ESB2 Controller 3 (x8) PCI-Express (2 w/ Gen 2.0), 1 (x4) PCI-Express (Using x8 slot), 2x 64-bit 133MHz PCI-X, 1 UIO slots ATI ES1000 Graphics with 32 MB video memory IPMI 2.0 (SIMSO) Slot



Request more information Send to a friend View all motherboards

  • BIOS Features

    ACPI 1.0
    ACPI 2.0
    DMI 2.3
    PCI 2.2
    Plug and Play (PnP)
    SMBIOS 2.3
    USB keyboard support

  • BIOS Type

    8MB Flash EEPROM

  • Chipset

    Intel 5400 (Seaburg)

  • CPU Family

    Intel Xeon

  • CPU Manufacturer

    Intel

  • CPU Quantity (Maximum)

    2

  • CPU Series

    Intel Xeon 5100
    Intel Xeon 5200
    Intel Xeon 5300
    Intel Xeon 5400

  • Drive Support

    IDE
    SATA

  • Expansion Slots

    1 x (x4) PCI-E
    1 x UIO
    2 x 64-bit 133MHz PCI-X
    3 x (x8) PCI-E

  • Form Factor

    Enhanced Extended ATX

  • GPU Family

    ATI Radeon ES1000

  • GPU Manufacturer

    AMD (ATI)

  • GPU Memory Sizes

    32MB

  • GPU Model

    Radeon ES1000

  • Input/Output

    1 x EIDE channel
    1 x Floppy controller
    1 x PS/2 keyboard port
    1 x PS/2 mouse port
    1 x Serial Header
    1 x Serial Port
    1 x VGA port
    5 x USB 2.0 ports
    6 x SATA ports

  • Management

    IPMI 1.5
    IPMI 2.0

  • Manufacturer

    Supermicro

  • Memory (Maximum)

    128GB

  • Memory Sizes

    1GB
    2GB
    4GB
    8GB
    512MB

  • Memory Slots

    16

  • Memory Speed

    533MHz
    667MHz
    800MHz

  • Memory Type

    DDR2 FB-DIMM SDRAM

  • Memory Voltage

    1.5V
    1.8V

  • Network Adapter

    Intel 82575 Dual-Port Gigabit

  • Network Ports

    2

  • Network Socket

    RJ45

  • Packaging

    Retail

  • Power Management

    ACPI Power Management
    Keyboard Wakeup
    Main Switch Override
    Power-on mode for AC power recovery
    Wake-On-LAN header
    Wake-On-Ring header

  • RAID Support (SATA)

    RAID 0
    RAID 1
    RAID 5
    RAID 10

  • SATA Controller

    Intel ESB2 SATA2 3Gbps

  • Software Management

    NMI
    Optional IPMI 2.0
    SuperDoctor III
    Watch Dog

  • System Bus

    1066MHz
    1333MHz
    1600MHz
