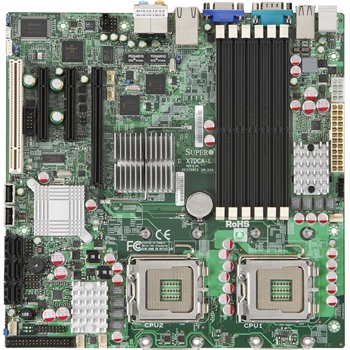

Designed and manufactured by industry leaders Supermicro, the X7DCA board is the only choice for those seeking to create the ultimate system, delivering leading edge performance and power in a sleek and streamlined package.
Based on the Intel 5100 San Clemente chipset and supporting upto 48GB of DDR2 RAM, this board can handle Quad and Dual core 64-bit Xeons giving you maximum performance for all your processing needs. With an 8 port LSI SAS controller, Dual port gigabit Ethernet controller, XGI Z9 graphics with 32MB video memory, and 6 SATA ports via an ESB2 Controller, this incredibly versatile and adaptable MicroATX mainboard will provide outstanding performance for whatever your workstation needs.
Key Features
Micro ATX Form Factor Intel 5100 (San Clemente) Chipset Dual Intel 64-bit Xeon Quad-Core or Dual-Core, with 1333 / 1066 MHz FSB Up to 48GB 667/533MHZ DDR2 ECC Register SDRAM Dual Intel 82573L Gigabit Ethernet Controllers 6x SATA2 (3 Gbps) Ports via ICH9R SB Controller 1 (x16) PCI-e, 1 (x8) PCI-e, 1 (x4) PCI-e (using x8 slot), 1x PCI 33MHz slots High Definition 7.1 Channel Audio XGI Z9s Graphics with 32 MB DDR2 memory 10" x 10" board size
Request more information Send to a friend View all motherboards
-
Audio
Realtek ALC883 High Definition 7.1 Channel Audio
-
BIOS Features
ACPI 1.0
ACPI 2.0
ACPI 3.0
DMI 2.3
Hardware BIOS Virus protection
PCI 2.2
Plug and Play (PnP)
SMBIOS 2.3
USB keyboard support
-
BIOS Type
16MB SPI Flash with Phoenix BIOS
-
Chipset
Intel 5100 (San Clemente)
-
Chipset I/O Controller
ICH9R
-
CPU Family
Intel Xeon
-
CPU Manufacturer
Intel
-
CPU Quantity (Maximum)
2
-
CPU Series
Intel Xeon 5100
Intel Xeon 5200
Intel Xeon 5300
Intel Xeon 5400
-
Drive Support
SATA
-
Error Detection
Corrects single-bit errors
Detects double-bit errors (using ECC memory)
-
Expansion Slots
1 x 32-bit 33MHz PCI (5V)
1 x (x4) PCI-E (using x8) slot
1 x (x8) PCI-E
1 x (x16) PCI-E
-
Form Factor
ATX
-
GPU Family
XGI Volari Z9S Series
-
GPU Manufacturer
XGI
-
GPU Memory Sizes
32MB
-
Input/Output
1 x Floppy controller
1 x PS/2 keyboard port
1 x PS/2 mouse port
1 x Serial Header
1 x Serial Port
6 x SATA ports
8 x USB 2.0 ports
-
LED indicators
+5V Standby Alert LED
CPU / System Overheat LED
Suspend-state indicator LED
-
Manufacturer
Supermicro
-
Memory (Maximum)
48GB
-
Memory Sizes
1GB
2GB
4GB
8GB
512MB
-
Memory Slots
6
-
Memory Speed
533MHz
667MHz
-
Memory Type
DDR2 Registered ECC SDRAM
-
Memory Voltage
1.8V
-
Network Adapter
Intel 82573L Gigabit PCI-E
-
Network Ports
2
-
Network Socket
RJ45
-
Packaging
Bulk
-
Power Management
ACPI Power Management
CPU Fan Auto-off in Sleep Mode
Internal / External modem remote ring-on
Wake-On-LAN header
Wake-On-Ring header
-
RAID Support (SATA)
RAID 0
RAID 1
RAID 5
RAID 10
-
SATA Controller
Intel ICH9R SATA2 3Gbps
-
Software Management
NMI
SuperDoctor III
Watch Dog
-
System Bus
1066MHz
1333MHz
