Supermicro PDSMU (Bulk)

Product Overview

Contact us for pricing

MBD-PDSMU-B

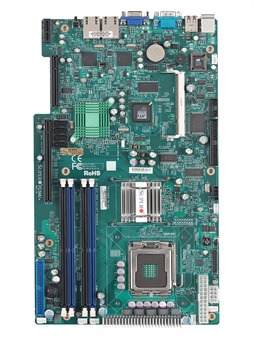

Supermicro PDSMU (Bulk)

Designed by industry leaders Supermicro, the PDSMU is the ultimate in server motherboards, offering unparalleled processing power.

Using the Intel 3010 Mukilteo chipset and supporting a wide range of processors in the LGA775 package alongside 8GB of DDR2 SDRAM, this board is more than capable of handling any task. With a built in SATA controller offering support for upto 4 drives, IPMI 2.0, onboard ATI ES1000 16MB graphics and two Intel PCI-e gigabit LAN ports, this board is packed full of features, making your computing experience a breeze.



Key Features

Intel® Xeon® 3200 / 3000 Series, Core™ 2 Quad / Duo / Extreme Series, Pentium® D, Pentium Extreme Edition, Pentium 4 & Celeron D in LGA775 Package (FSB 1066/800/533) Intel® 3010 (Mukilteo-2P) Chipset Up to 8GB unbuffered ECC / non-ECC DDR2 667/533 SDRAM Intel® 82573V + Intel® 82573L PCI-e Gigabit Controllers Built-in SATA Controller 4x SATA (3Gbps) Drive Support 1 Universal I/O (UIO) Slot 1 (x4) & 2 (x8) PCI-Express On board ATI ES1000 16MB Graphics IPMI 2.0 (Virtual Media Over LAN or Optional KVM Over LAN)



Request more information Send to a friend View all motherboards

  • BIOS Features

    ACPI 1.0
    DMI 2.3
    PCI 2.2
    Plug and Play (PnP)
    SMBIOS 2.3
    USB keyboard support

  • BIOS Type

    8MB Flash EEPROM with Phoenix

  • Chipset

    Intel 3010 (Mukilteo 2)

  • Chipset I/O Controller

    ICH7R
    PXH

  • CPU Family

    Intel Celeron
    Intel Core2
    Intel Pentium
    Intel Xeon

  • CPU Manufacturer

    Intel

  • CPU Notes

    Does not support Q9000, E8000, E7000, E5000 series or 45nm CPU

  • CPU Quantity (Maximum)

    1

  • CPU Series

    Intel Celeron 400
    Intel Celeron E1000
    Intel Core2 Duo
    Intel Core2 Extreme
    Intel Core2 Quad
    Intel Pentium 4
    Intel Pentium D
    Intel Pentium E2000
    Intel Pentium Extreme
    Intel Xeon 3000
    Intel Xeon 3200

  • Drive Support

    IDE
    SATA

  • Expansion Slots

    1 x (x4) PCI-E
    1 x UIO
    2 x (x8) PCI-E

  • Form Factor

    Proprietary

  • GPU Family

    ATI Radeon ES1000

  • GPU Manufacturer

    AMD (ATI)

  • GPU Memory Sizes

    16MB

  • GPU Model

    Radeon ES1000

  • Input/Output

    1 x EIDE channel
    1 x Floppy controller
    1 x PS/2 keyboard port
    1 x PS/2 mouse port
    1 x Serial Header
    1 x Serial Port
    1 x VGA port
    4 x SATA ports
    6 x USB 2.0 / 1.1 ports

  • LED indicators

    CPU / System Overheat LED
    Standby alert LED

  • Management

    IPMI 2.0
    Optional: AOC-SIMSO+

  • Manufacturer

    Supermicro

  • Memory (Maximum)

    8GB

  • Memory Sizes

    1GB
    2GB
    256MB
    512MB

  • Memory Slots

    4

  • Memory Speed

    533MHz
    667MHz

  • Memory Type

    DDR2 Unbuffered ECC SDRAM
    DDR2 Unbuffered Non-ECC SDRAM

  • Memory Voltage

    1.8V

  • Network Adapter

    Intel 82573L Gigabit PCI-E
    Intel 82573V Gigabit PCI-E

  • Network Ports

    2

  • Network Socket

    RJ45

  • Packaging

    Bulk

  • Power Management

    ACPI Power Management
    Internal / External modem remote ring-on
    Main Switch Override
    Power-on mode for AC power recovery
    Wake-On-LAN header
    Wake-On-Ring header

  • RAID Support (SATA)

    RAID 0
    RAID 1
    RAID 5
    RAID 10

  • SATA Controller

    Intel ICH7R SATA2 3Gbps

  • Software Management

    NMI
    SuperDoctor III
    W83793G H/W Monitor
    Watch Dog

  • System Bus

    533MHz
    800MHz
    1066MHz
