Supermicro C2SBA+

Product Overview

£131.63 (ex VAT) | £157.96 (inc VAT)

MBD-C2SBA+-O

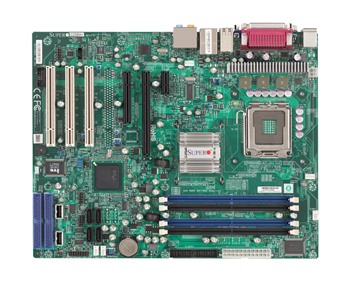

Supermicro C2SBA+

Built by award winning industry experts Supermicro, the C2SBA+ is the perfect motherboard for those looking for a powerful desktop computing solution

Capable of supporting a wide range of processors in the LGA 775 Package (including Core 2 Quad, Duo) this board can hold upto 8GB of dual channel DDR2 SDRAM. With an Intel Gigabit LAN port, High Definition 7.1 Channel audio, a x16 PCI-Express slot and a built in SATA2 controller offering support for upto 6 SATA drives at 3.0Gbps, this is a must have for those seeking to build high performing desktop systems.



Key Features

Intel® Core™ 2 Duo / Quad processors in LGA775 Package (FSB 1333/1066/800) Intel® G33 + ICH9 Chipset Up to 8GB dual channel unbuffered, non-ECC DDR2 800/667 SDRAM 1x Intel® 82566 Gigabit Ethernet Controller Built-in SATA2 Controller 4x SATA (3Gbps) 1 (x16) PCI-Express, 1 (x4) PCI-Express (using x8 slot), 1 (x1) PCI-Express, 3x 32-bit PCI slots High Definition 7.1 Channel Audio Total 12 USB 2.0 ports 6 rear + 2 Type A connectors + 2 headers (4 ports) TPM Support



Request more information Send to a friend View all motherboards

  • BIOS Features

    ACPI 1.0
    ACPI 2.0
    DMI 2.3
    PCI 2.2
    Plug and Play (PnP)
    SMBIOS 2.3
    USB keyboard support

  • BIOS Type

    16MB Flash EEPROM with SPI BIOS

  • Chipset

    Intel G33 (Bearlake)

  • Chipset I/O Controller

    ICH9

  • CPU Family

    Intel Celeron
    Intel Core2
    Intel Pentium

  • CPU Manufacturer

    Intel

  • CPU Quantity (Maximum)

    1

  • CPU Series

    Intel Celeron 400
    Intel Celeron E1000
    Intel Core2 Duo E4000
    Intel Core2 Duo E6000
    Intel Core2 Duo E7000
    Intel Core2 Duo E8000
    Intel Core2 Quad Q6000
    Intel Core2 Quad Q8000
    Intel Core2 Quad Q9000
    Intel Pentium E2000
    Intel Pentium E5000

  • Drive Support

    IDE
    SATA

  • Expansion Slots

    1 x (x1) PCI-E
    1 x (x4) PCI-E
    1 x (x16) PCI-E
    3 x 32-bit 33MHz PCI (5V)

  • Form Factor

    ATX

  • GPU Manufacturer

    Intel

  • Input/Output

    1 x ECP / EEP Parallel Port
    1 x Floppy controller
    1 x PS/2 keyboard port
    1 x PS/2 mouse port
    1 x Serial Header
    1 x Serial Port
    1 x VGA port
    2 x EIDE channels
    4 x SATA ports
    12 x USB 2.0 ports
    Line-in / Line-out / Microphone Ports

  • Manufacturer

    Supermicro

  • Memory (Maximum)

    8GB

  • Memory Sizes

    1GB
    2GB
    256MB
    512MB

  • Memory Slots

    4

  • Memory Speed

    667MHz
    800MHz

  • Memory Type

    DDR2 Unbuffered Non-ECC SDRAM

  • Memory Voltage

    1.8V

  • Network Adapter

    Intel 82566 Gigabit

  • Network Ports

    1

  • Network Socket

    RJ45

  • Packaging

    Retail

  • Power Management

    ACPI Power Management
    Internal / External modem remote ring-on
    Keyboard Wakeup
    Main Switch Override
    Power-on mode for AC power recovery
    Suspend to RAM (STR)
    Wake-On-LAN header
    Wake-On-Ring header

  • SATA Controller

    Intel ICH9 SATA2 3Gbps

  • Software Management

    NMI
    SuperDoctor III
    Watch Dog

  • System Bus

    800MHz
    1066MHz
    1333MHz
