£123.76 (ex VAT) | £148.51 (inc VAT)

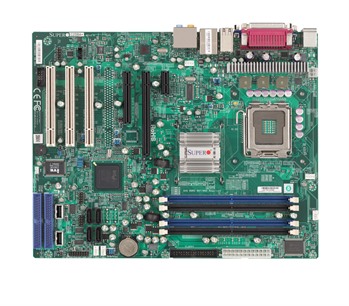

Built by award winning industry experts Supermicro, the C2SBA+ is the perfect motherboard for those looking for a powerful desktop computing solution.
Capable of supporting a wide range of processors in the LGA 775 Package (including Core 2 Quad, Duo) this board can hold upto 8GB of dual channel DDR2 SDRAM. With an Intel Gigabit LAN port, High Definition 7.1 Channel audio, a x16 PCI-Express slot and a built in SATA2 controller offering support for upto 6 SATA drives at 3.0Gbps, this is a must have for those seeking to build high performing desktop systems.
Request more information Send to a friend View all motherboards
BIOS Features
ACPI 1.0
ACPI 2.0
DMI 2.3
PCI 2.2
Plug and Play (PnP)
SMBIOS 2.3
USB keyboard support
BIOS Type
16MB Flash EEPROM with SPI BIOS
Chipset
Intel G33 (Bearlake)
Chipset I/O Controller
ICH9
CPU Family
Intel Celeron
Intel Core2
Intel Pentium
CPU Manufacturer
Intel
CPU Quantity (Maximum)
1
CPU Series
Intel Celeron 400
Intel Celeron E1000
Intel Core2 Duo E4000
Intel Core2 Duo E6000
Intel Core2 Duo E7000
Intel Core2 Duo E8000
Intel Core2 Quad Q6000
Intel Core2 Quad Q8000
Intel Core2 Quad Q9000
Intel Pentium E2000
Intel Pentium E5000
Drive Support
IDE
SATA
Expansion Slots
1 x (x1) PCI-E
1 x (x4) PCI-E
1 x (x16) PCI-E
3 x 32-bit 33MHz PCI (5V)
Form Factor
ATX
GPU Manufacturer
Intel
Input/Output
1 x ECP / EEP Parallel Port
1 x Floppy controller
1 x PS/2 keyboard port
1 x PS/2 mouse port
1 x Serial Header
1 x Serial Port
1 x VGA port
2 x EIDE channels
4 x SATA ports
12 x USB 2.0 ports
Line-in / Line-out / Microphone Ports
Manufacturer
Supermicro
Memory (Maximum)
8GB
Memory Sizes
1GB
2GB
256MB
512MB
Memory Slots
4
Memory Speed
667MHz
800MHz
Memory Type
DDR2 Unbuffered Non-ECC SDRAM
Memory Voltage
1.8V
Network Adapter
Intel 82566 Gigabit
Network Ports
1
Network Socket
RJ45
Packaging
Bulk
Power Management
ACPI Power Management
Internal / External modem remote ring-on
Keyboard Wakeup
Main Switch Override
Power-on mode for AC power recovery
Suspend to RAM (STR)
Wake-On-LAN header
Wake-On-Ring header
SATA Controller
Intel ICH9 SATA2 3Gbps
Software Management
NMI
SuperDoctor III
Watch Dog
System Bus
800MHz
1066MHz
1333MHz
