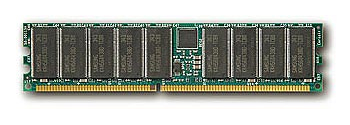

The CM72SD1024RLP is a Double Data Rate SDRAM Dual Inline Memory Module (DIMM), designed for applications in which both performance and density are critical. This DIMM includes Error Checking and Correcting (ECC) for maximum reliability, and has registered address and control signals to enable fully configured systems. These modules are constructed using 512 MBit SDRAMs, and are fully compliant with appropriate specifi cations.
These DIMMs are constructed using eighteen 64Mx8 DDR SDRAMs in TSOP-II packages. The module also includes an EEPROM to support Serial Presence Detect (SPD) requirements. Decoupling capacitors are mounted on the printed circuit board for each DDR SDRAM device, and series termination is provided on all clock and data lines.
The synchronous design of these Corsair SDRAM DIMMs allows precise cycle control with the use of the system clock. Two I/O transactions are possible on every clock cycle due to the use of double data rate RAMs. The high clock frequency and high density of this device enable a high level of performance to be achieved in advanced workstations and servers.
Key Features
Error Checking and Correcting (ECC) for maximum memory reliability Very high density using 512 MBit SDRAM devices High Performance SSTL-2 compatible (2.5V) switching Serial Presence Detect (SPD) EEPROM provides automatic memory configuration Series termination on clock and data lines Board footprint of less than 2.0 square inches Built using eighteen 64M x 8 DDR SDRAMS, 4K refresh Low Module Height: 1.2 inches MAX Pin-compatible with all PC1600 and PC2100 modules
-
DRAM Type
DDR SDRAM
-
ECC
Yes
-
Latency
CL2.5
-
Manufacturer
Corsair
-
Module Capacity
1GB
-
Module Type
DIMM
-
Number of Modules
1
-
Pins
184-pin
-
Registered
Yes
-
Speed
333MHz
