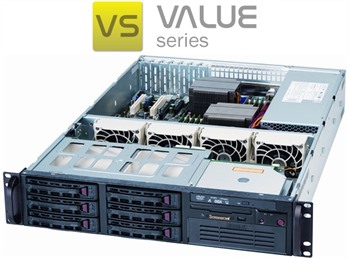

Boston Value Series 380

Product Overview

Contact us for pricing

BOS-VS380

Built to Order


A 2U chassis design packs a significant amount of processing and storage power whilst also providing high level features, such as integrated IPMI 2.0, providing excellent management capabilities with dedicated inbuilt KVM and LAN.

Storage capacity is well catered for with native support for up to six low cost hot-swappable SATA hard drives with an additional 5.25” bay for extra expansion or another cold swappable hard drive.

There are also a variety of x16 and x8 speed PCI-E expansion slots which provide excellent expansion capabilities for multiple high speed PCI-E devices.

Using Microsoft Windows Server 2008 R2 Standard, the Value Series 380 supports multiple users and is able to enhance your business with a dependable and affordable solution.



Key Features

High Value Low Cost alternative to Tier 1 platforms Energy efficient design optimized for power cooling efficiency – providing reduced operational costs and environmental impact Worldwide on-site warranty packages available Full support for dual processors to allow for solutions to be easily expanded to suit application requirements Enterprise class manufacture and construction assuring high performance and stability with 24/7 uptime



Request more information Send to a friend View all servers

  • Backplane

    1 x SATA Backplane

  • BIOS Features

    ACPI 1.0
    ACPI 2.0
    ACPI 3.0
    PCI 2.2
    Plug and Play (PnP)
    USB keyboard support

  • BIOS Type

    32MB SPI Flash EEPROM with AMI UEFI BIOS

  • Buttons

    Power On/Off button
    System Reset button

  • Chipset

    Intel 5520 (Tylersburg-36D)

  • Chipset I/O Controller

    ICH10R
    IOH-36D

  • Colour

    Black

  • CPU Family

    Intel Xeon

  • CPU Manufacturer

    Intel

  • CPU Model

    E5506

  • CPU Quantity (Installed)

    1

  • CPU Quantity (Maximum)

    2

  • CPU Series

    Intel Xeon 5500

  • CPU Socket

    Intel LGA 1366

  • CPU Speed

    2.13 GHz

  • Drive Bays

    6 x 3.5" Hot-swap SATA

  • Drive Support

    SATA

  • Error Detection

    Corrects single-bit errors
    Detects double-bit errors (using ECC memory)
    Supports Intel x4 and x8 SDDC

  • Expansion Slots

    1 x (x4) PCI-E
    1 x (x4) PCI-E 2.0
    4 (x8) PCI-E 2.0 slots

  • Form Factor

    2U

  • GPU Family

    Matrox G-Series

  • GPU Manufacturer

    Matrox

  • GPU Model

    Matrox G200eW

  • HDD's (Installed)

    1 x 500GB WD RE3 SATA

  • Input/Output

    1 x PS/2 keyboard port
    1 x PS/2 mouse port
    1 x Serial Port
    1 x VGA port
    6 x SATA ports
    8 x USB 2.0 ports

  • LED indicators

    2 x Network activity LEDs
    Hard drive activity LED
    Power status LED
    System Overheat LED

  • Management

    IPMI 2.0

  • Manufacturer

    Boston

  • Memory (Installed)

    6GB DDR3 1333MHz 240PIN DIMM ECC SDRAM

  • Memory (Maximum)

    192GB

  • Memory Slots

    12

  • Memory Speed

    1333MHz

  • Memory Type

    DDR3 ECC

  • Network Adapter

    2 x Intel 82574L

  • Network Ports

    2

  • Network Socket

    1 x RJ45 Dedicated IPMI LAN port
    RJ45

  • Number of Nodes

    1

  • Peripheral Drives

    1 x Slim DVD-RW SATA drive

  • Product Range

    Boston VS

  • PSU Output Capacity

    650 Watts

  • RAID Support (SATA)

    RAID 0
    RAID 1
    RAID 5 (Windows only)
    RAID 10

  • SATA Controller

    Intel ICH10R

  • Software (Installed)

    Microsoft Windows Server 2008 R2 Foundation

  • System Cooling

    1 x Air Shroud
    4 x 4cm heavy duty RPM fans

Download the Data Sheet

Created to provide you with in depth information on our bespoke solutions, our product datasheets give you all of the necessary technical information of a product.

Download Data Sheet
