Boston Value Series 370T

Product Overview

Contact us for pricing

BOS-VS370T

Built to Order

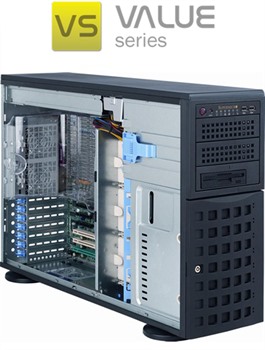

The Value Series 370T has a unique tower/4U chassis design that can be modified to suit user needs - it is a flexible option that can be customized for floor standing or rack mount use.

Reduced power and energy efficiency has been catered for exceptionally well with the Value Series 370T being one of the industry’s first server solutions providing 94%+ Platinum Level power efficiency; significantly reducing the TCO of running this server.

Using Microsoft Windows Server 2008 R2 Standard, the Value Series 370T supports multiple users and is able to enhance your business with a dependable and affordable solution.



Key Features

High Value Low Cost alternative to Tier 1 platforms Energy efficient design optimized for power cooling efficiency – providing reduced operational costs and environmental impact Worldwide on-site warranty packages available Full support for dual processors to allow for solutions to be easily expanded to suit application requirements Enterprise class manufacture and construction assuring high performance and stability with 24/7 uptime



Request more information Send to a friend View all servers

  • Backplane

    SAS / SATA Backplane w/ Enclosure Management

  • BIOS Features

    ACPI 1.0
    ACPI 2.0
    ACPI 3.0
    PCI 2.2
    Plug and Play (PnP)
    USB keyboard support

  • BIOS Type

    32MB SPI Flash EEPROM with AMI UEFI BIOS

  • Buttons

    Power On/Off button
    System Reset button

  • Chipset

    Intel 5520 (Tylersburg-36D)

  • Chipset I/O Controller

    ICH10R

  • Colour

    Black

  • CPU Family

    Intel Xeon

  • CPU Manufacturer

    Intel

  • CPU Model

    E5630

  • CPU Quantity (Installed)

    1

  • CPU Quantity (Maximum)

    2

  • CPU Series

    Intel Xeon 5600

  • CPU Socket

    Intel LGA 1366

  • CPU Speed

    2.53 GHz

  • Drive Bays

    8 x Hot-swap SAS2

  • Drive Support

    SAS
    SATA

  • Error Detection

    Corrects single-bit errors
    Detects double-bit errors (using ECC memory)
    Supports Intel x4 and x8 SDDC

  • Expansion Slots

    1 x (x4) PCI-E
    1 x (x4) PCI-E 2.0
    3 x (x8) PCI-E 2.0

  • Form Factor

    4U/Tower

  • GPU Family

    Matrox G-Series

  • GPU Manufacturer

    Matrox

  • GPU Model

    Matrox G200eW

  • HDD's (Installed)

    1 x 500GB WD RE3 SATA

  • Input/Output

    1 x PS/2 keyboard port
    1 x PS/2 mouse port
    1 x Serial Port
    6 x SATA ports
    8 x 6Gbps SAS / SATA ports
    8 x USB 2.0 ports

  • LED indicators

    2 x Network activity LEDs
    Fan Fail LED
    Hard drive activity LED
    Power fail LED
    System Overheat LED

  • Manufacturer

    Boston

  • Memory (Installed)

    6GB DDR3 1333MHz 240PIN DIMM ECC SDRAM

  • Memory (Maximum)

    192GB

  • Memory Slots

    12

  • Memory Speed

    1333MHz

  • Memory Type

    DDR3 SDRAM

  • Network Adapter

    2 x Intel 82574L

  • Network Ports

    2

  • Network Socket

    1 x RJ45 Dedicated IPMI LAN port
    RJ45

  • Number of Nodes

    1

  • Peripheral Drives

    1 x 5.25" Bay for Floppy Drive
    1 x Slim DVD-RW SATA drive
    2 x 5.25" Peripheral Drive Bays

  • Product Range

    Boston VS

  • PSU Output Capacity

    920 Watts

  • RAID Support (SAS)

    RAID 0
    RAID 1
    RAID 10

  • RAID Support (SATA)

    RAID 0
    RAID 1
    RAID 5 (Windows only)
    RAID 10

  • SATA Controller

    Intel ICH10R

  • Software (Installed)

    Microsoft Windows Server 2008 R2 Foundation

  • System Cooling

    1 x 9cm PWM fan
    2 x 8cm Hot-swappable PWM Cooling Fans
    2 x Active heatsink w/ heatpipe
