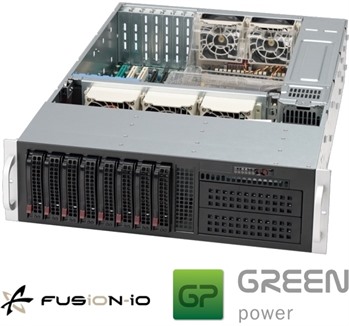

Boston GP ioServer 1303-T-F2640

Product Overview

Contact us for pricing

In partnership with Fusion-io Boston provide a variety of server platforms that have been designed to close the performance gap between your processing and your storage.

BOS-GX8-1303-T-F2640

Built to Order


Boston GP ioServer 1303-T-F2640

In partnership with Fusion-io Boston provide a variety of server platforms that have been designed to close the performance gap between your processing and your storage. Using a variety of the latest technologies, our platforms provide gigabytes of bandwidth and hundreds of thousands of IOPS all from within a single server platform that has been optimised to take advantage of the latest GPU and CPU based processing technologies.



Key Features

3U Rackmount Chassis 2 x WD RE3 250GB SATA Hard Drives 48GB DDR3 PC3-10600 (1333MHZ) 240PIN DIMM ECC Registered Memory Intel Xeon E5630 CPUs 800W (1 + 1) Redundant AC-DC high-efficiency power supply w/ PFC



Request more information Send to a friend View all servers

  • BIOS Features

    ACPI 3.0
    PCI 2.2
    Plug and Play (PnP)
    USB keyboard support

  • BIOS Type

    32MB SPI Flash EEPROM with AMI UEFI BIOS

  • Buttons

    Power On/Off button
    System Reset button

  • Chipset

    Intel 5520 (Tylersburg-36D)

  • Colour

    Black

  • CPU Family

    Intel Xeon

  • CPU Manufacturer

    Intel

  • CPU Model

    E5630

  • CPU Quantity (Maximum)

    2

  • CPU Series

    Intel Xeon E5600

  • CPU Speed

    2.53 GHz

  • Drive Bays

    8 x 3.5" Hot-swap SAS/SATA

  • Drive Support

    SATA

  • Expansion Slots

    7 x full-height full-length expansion slots

  • Form Factor

    3U

  • GPU Family

    Matrox G-Series

  • GPU Manufacturer

    Matrox

  • GPU Model

    Matrox G200eW

  • HDD's (Installed)

    2 x 250GB WD RE3 SATA

  • LED indicators

    2 x Network activity LEDs
    Hard drive activity LED
    Power fail LED
    Power status LED
    System Overheat LED

  • Manufacturer

    Boston

  • Memory (Installed)

    48GB DDR3 PC3-10600 (1333MHZ) 240PIN DIMM ECC Registered

  • Memory (Maximum)

    192GB

  • Memory Slots

    12

  • Memory Speed

    1333MHz

  • Memory Type

    DDR3 Registered ECC SDRAM

  • Network Ports

    2

  • Network Socket

    1 x RJ45 Dedicated IPMI LAN port
    RJ45

  • Number of Nodes

    1

  • Peripheral Drives

    2 x Fusion-io ioDrive Duo 640GB MLC PCI-E x8

  • Product Range

    Boston GP
    Boston GP-ioServer

  • PSU Output Capacity

    800 Watts

  • PSU Quantity

    2

  • RAID Support (SATA)

    RAID 0
    RAID 1
    RAID 5 (Windows only)
    RAID 10

  • System Cooling

    2 x 80mm Rear-exhaust Fans
    3 x 8cm Hot-swap PWM Fans
