Product Overview
£464.47 (ex VAT) | £557.37 (inc VAT)
Promotion - 30% off sale (Normally £663.53)

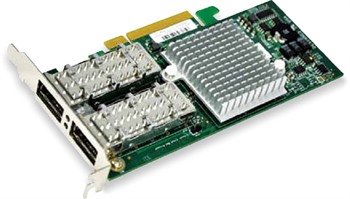

AOC-UIBQ-m2 InfiniBand card with Virtual Protocol Interconnect (VPI) provides the highest performing and most flexible interconnect solution for performance-driven server and storage clustering applications in Enterprise Data Centers, High- Performance Computing, and Embedded environments. Clustered databases, parallelized applications, transactional services and high-performance embedded I/O applications will achieve significant performance improvements resulting in reduced completion time and lower cost per operation. AOC-UIBQ-m2 simplifies network deployment by consolidating clustering, communications, storage, and management I/O and by providing enhanced performance in virtualized server environments.
Key Features
Virtual Protocol Interconnect (VPI) 1us MPI ping latency Selectable 40Gb/s InfiniBand or 10GbE port PCI Express 2.0 (up to 5GT/s) CPU offload of transport operations End-to-end QoS and congestion control Hardware-based I/O virtualization TCP/UDP/IP stateless offload Fibre Channel encapsulation (FCoIB or FCoE)
Request more information Send to a friend View all storage controllers
-
Compatible Operating Systems
Citrix XenServer 4.1
Fedora
Microsoft Windows Server 2003
Microsoft Windows Server 2008
Microsoft Windows Server CCS 2003
Novell
OpenFabrics Enterprise Distribution (OFED)
OpenFabrics Windows Distribution (WinOF)
Red Hat Linux
VMWare ESX Server 3.5
-
Data Transfer Rate
40 Gb/s
-
Input/Output
Dual QSFP Ports
-
Interface
PCI-E x8
-
Manufacturer
Supermicro
-
Operating Temperature
0°C ~ +55°C
-
Regulatory
PB-Free
RoHS Compliant 6/6
-
Universal I/O?
Yes
