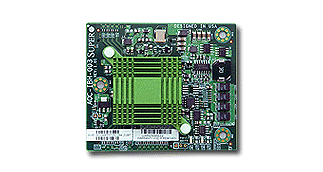

Supermicro Dual-Port Infiniband Mezzanine HCA

Product Overview

£140.93 (ex VAT) | £169.11 (inc VAT)

Promotion - 75% off sale (Normally £563.70)


20 In Stock

Supermicro Dual-Port Infiniband Mezzanine HCA

Dual-Port, Low Latency InfiniBand Adapter Cards For SuperBlade.

AOC-IBH-003 This InfiniBand mezzanine card for the SuperBlade delivers low-latency and high-bandwidth for performance-driven server and storage clustering applications in Enterprise Data Centers, High-Performance Computing, and Embedded environments. Clustered data bases, parallelized applications, transactional services and high-performance embedded I/O applications will achieve significant performance improvements resulting in reduced completion time and lower cost per operation. AOC-IBH-003 simplifies network deployment by consolidating clustering, communications, storage, and management I/O and by providing enhanced performance in virtualized server environments.


Key Features

1.12us InfiniBand latency (ib_write_bw) Dual 20Gb/s InfiniBand ports or 10Gb/s Ethernet ports CPU offload of transport operations End-to-end QoS and congestion control Hardware-based I/O virtualization TCP/UDP/IP stateless offload Full support for Intel I/OAT Support both AMD and Intel platforms


Add to Cart Request more information Send to a friend View all blade

  • Chipset

    Mellanox ConnectX

  • Compatible Operating Systems

    Microsoft Windows Server
    Red Hat Enterprise Linux (RHEL)

  • Connectivity

    Interoperable with InfiniBand switches through SuperBlade InfiniBand Switch (SBI-IBS-001)

  • CPU Offloads

    Compliant to Microsoft RSS and NetDMA
    Full support for Intel I/OAT
    Intelligent interrupt coalescence
    TCP/UDP/IP stateless offload

  • Hardware-based I/O Virtualization

    Address translation and protection
    Complimentary to Intel and AMD I/OMMU
    Multiple queues per virtual machine
    Native OS performance

  • InfiniBand

    Atomic operations
    Hardware-based congestion control
    RDMA, Send/Receive semantics

  • Input/Output

    2 x 4x DDR 20-Gbps Infiniband Ports
    2 x 10-Gbps Ethernet Ports

  • Manufacturer


  • Operating Temperature

    0°C ~ +55°C

  • Power Consumption

    10.4W typical/11W max
