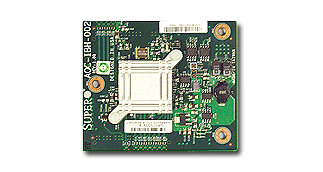

Single-Port, Low Latency InfiniBand Adapter Cards For SuperBlade.
AOC-IBH-002 This InfiniBand mezzanine card for the SuperBlade delivers low-latency and high-bandwidth for performance-driven server and storage clustering applications in Enterprise Data Centers, High-Performance Computing, and Embedded environments. Clustered data bases, parallelized applications, transactional services and high-performance embedded I/O applications will achieve significant performance improvements resulting in reduced completion time and lower cost per operation. AOC-IBH-002 simplifies network deployment by consolidating clustering, communications, storage, and management I/O and by providing enhanced performance in virtualized server environments.
Key Features
3.10us latency (ib_write_bw) Single 20Gb/s InfiniBand port CPU offload of transport operations End-to-end QoS and congestion control Hardware-based I/O virtualization TCP/UDP/IP stateless offload Full support for Intel I/OAT Support both AMD and Intel platforms
-
Compatible Operating Systems
Fedora
Microsoft Windows Server
Novell
Red Hat Enterprise Linux (RHEL)
-
Connectivity
Interoperable with InfiniBand switches through SuperBlade InfiniBand Switch (SBI-IBS-001)
-
CPU Offloads
Compliant to Microsoft RSS and NetDMA
Full support for Intel I/OAT
Intelligent interrupt coalescence
TCP/UDP/IP stateless offload
-
Hardware-based I/O Virtualization
Address translation and protection
Complimentary to Intel and AMD I/OMMU
Multiple queues per virtual machine
Native OS performance
-
InfiniBand
20Gb/s per port
Atomic operations
Hardware-based congestion control
Mellanox InfiniHost III LX IB DDR Chip
RDMA, Send/Receive semantics
Single 4X InfiniBand port
-
Interface
SuperBlade Mezzanine Card
-
Manufacturer
Supermicro
-
Operating Temperature
0°C ~ +55°C
-
Regulatory
RoHS Compliant 5/6, Server Exemption
