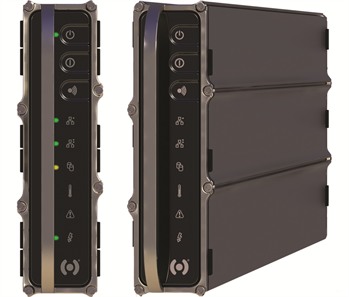

LSS™ 200 offers the latest generation of intelligent high performance 64-bit Intel® Xeon® 5500 and 5600 processors. Servers with two Intel® Xeon® 5600 series processors provide near-supercomputing capacity with up to 12 computational cores, 24 threads and memory configurations as large as 192 GB. LSS™ 200 is engineered to support up to 6 memory modules per processor and offers a wide menu of DDR3 fully buffered RDIMM and ECC memory configurations with memory speeds ranging from 1066 MHz to 1333MHz.
Power On Demand
Intel® Xeon® 5600 processors with Intel® Power and Turbo Boost Technology™ automatically regulate power consumption and intelligently adjust server performance according to your application needs - maximizing both energy efficiency and performance while delivering up to 40 percent more performance per watt compared to previous generation processors.
Intel® Xeon® 5600 processors include Hyper-Threading Technology, providing more cache and memory bandwidth to increase throughput and responsiveness for multi-threaded applications. These intelligent processors also include Intel® QuickPath Technology to accelerate traffic between processors and I/O controllers for bandwidth intensive applications.
The Logic Behind It All
LSS™ 200 uses the Intel® 5520 chipset delivering support for 36 lanes of PCI Express 2.0 I/O, Intel VT-c and Intel VT-d enhancements for virtualization OS, Intel Dynamic Power Node Manager system management, and support for Intel ICH10, ICH10R and Intel 6700pxh 64-bit PCI hub.
Intel 5520 (Tylersburg)
Chipset I/O Controller
CPU Quantity (Maximum)
Intel Xeon 5500
Intel Xeon 5600
1 x (x16) PCI-E 2.0
Mellanox ConnectX QDR (Optional)
1 x Fast UART 16550 serial port
2 x USB 2.0 ports
6 x SATA2 ports
Yes - Liquid Cooled
Winbond WPCM450 BMC
DDR3 Registered ECC RDIMM
Intel 82576 Dual-Port Gigabit
2.0 serial-over-LAN support via dedicated 10/100Mb/s management NIC
Baseboard management module with IPMI
Core Coolant™ dielectric fluid is clear, odorless, biodegradable and safe
Dynamic Host Configuration Protocol (DHCP)
IPMI 2.0 with hardware encrypted support through a dedicated LAN connection
Remote power on/off, PEF configuration
Secure Socket Layer (SSL)
Telnet Access, SSH support, SMASH CLP (command line)
PSU Output Capacity
RAID Support (SATA)
Supported Socket Type
Intel LGA 1366
QPI (up to 4.8 GT/s)
QPI (up to 5.86 GT/s)
QPI (up to 6.4 GT/s)
Created to provide you with in depth information on our bespoke solutions, our product datasheets give you all of the necessary technical information of a product.Download Data Sheet
