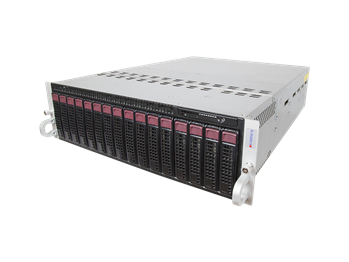

Supermicro SuperServer 5037MC-H8TRF

Supermicro SuperServer 5037MC-H8TRF

Product Overview

Contact us for pricing

The Supermicro MicroCloud 5037MC-H8TRF modular server system provides the high density, high performance, high efficiency and cost effectiveness required for cloud computing infrastructure. Eight modular server systems (nodes) are conveniently integrated into a compact 3U chassis that is only 23 inches deep.

SYS-5037MC-H8TRF

Out of Stock


Supermicro SuperServer 5037MC-H8TRF

High Density, High Performance, and Cost Effective

The Supermicro MicroCloud modular server system provides 8 modular server nodes conveniently integrated into a compact 3U chassis that is only 23" deep. These cable-free, hot-pluggable server nodes operate independantly. Each node is powered by an Intel® Xeon® E3-1200 processor and provides up to 32GB of ECC DDR3 1333MHz UDIMM memory, one PCI-E 2.0 x8 expansion slot for low-profile add-on card, and two 3.5" SATA 3.0 hard disk drives.

High Efficiency, Easy-to-Service, Space Saving

The MicroCloud system utilizes redundant 1620W Platinum Level high-efficiency power supplies and sophisticated cooling zone controls for a Green energy profile. The 8 nodes provide easy access for efficient servicing, and the high density per node saves valuable data center space.

Optimized for Cloud Computing and Web 2.0

The Supermicro MicroCloud systems are effective in cloud computing, data center, web hosting, and virtualization environments.





Key Features

Intel® Xeon® processor E3-1200 family; socket H2 (LGA 1155) 2x 3.5" Hot-swap SATA3 (6 Gbps) 1x (x8) PCI-E 2.0 low-profile slot Up to 32GB DDR3 ECC UDIMM 1333/1066MHz Memory support; 2 channels 2x Intel 82580 GbE LAN ports 1x Dedicated LAN for IPMI Remote Management 4x 8cm Heavy duty fans with optimal cooling zone 1620W Redundant 80Plus Platinum Level power supplies



Request more information Send to a friend View all servers

  • BIOS Features

    ACPI 1.0
    ACPI 2.0
    APM 1.2
    Plug and Play (PnP)
    RTC (Real Time Clock) Wakeup
    SMBIOS 2.3
    USB keyboard support

  • BIOS Type

    64Mb SPI Flash EEPROM with AMI BIOS

  • Buttons

    Power On/Off button

  • Certifications

    80 Plus Platinum (94%+)

  • Chipset

    Intel C204 PCH

  • Colour

    Black

  • CPU Family

    Intel Core i3
    Intel Pentium
    Intel Xeon E3

  • CPU Manufacturer

    Intel

  • CPU Model

    E3-1220V2

  • CPU Quantity (Maximum)

    8

  • CPU Series

    Intel Xeon Processor E3-1200

  • CPU Socket

    Socket H2 (LGA 1155)

  • Drive Bays

    2 x 3.5" hot-swap SATA3 (6Gbps) HDDs per node

  • Error Detection

    Corrects single-bit errors
    Detects double-bit errors (using ECC memory)

  • Expansion Slots

    1 x (x8) PCI-E 2.0 (Low-Profile)

  • Form Factor

    3U

  • GPU Family

    Matrox G-Series

  • GPU Manufacturer

    Matrox

  • GPU Memory Sizes

    16MB

  • GPU Model

    Matrox G200eW

  • Input/Output

    1 x COM port
    1 x RJ45 Dedicated IPMI LAN port
    1 x SATA DOM port
    1 x VGA port
    2 x RJ45 LAN ports
    2 x SATA 3.0 ports
    2 x USB 2.0 ports

  • IPMI

    IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
    Nuvoton WPCM450 BMC
    Support for Intelligent Platform Management Interface v.2.0

  • LED indicators

    Node status LED
    Power status LED

  • Manufacturer

    Supermicro

  • Memory (Maximum)

    32GB

  • Memory Sizes

    1GB
    2GB
    4GB
    8GB

  • Memory Slots

    4

  • Memory Speed

    1333MHz
    1600MHz

  • Memory Type

    DDR3 Unbuffered ECC UDIMM

  • Memory Voltage

    1.5V

  • Network Adapter

    Intel® 82580DB GbE controller
    Intel® I/OAT 3 support for fast, scaleable, and reliable networking
    iSCSI boot and PXE support
    Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
    VMDq support for better performance of virtualization

  • Other Features

    Rear Window Switch - Power / UID (Each Node)

  • Product Range

    Supermicro MicroCloud

  • PSU Output Capacity

    1620 Watts

  • Redundant Power Supply?

    Yes

  • Super I/O

    Nuvoton WPCM450RA0BX

  • System Cooling

    4 x Cooling Fans

3
January 2012

Supermicro Microcloud reviewed by Xtreme CPU

Xtreme CPU had the pleasure of reviewing one of Supermicro's latest releases: the MicroCloud. The MicroCloud is an evolutionary product that brings high-density computing to small hosting companies by incorporating 8 Sandy Bridge class Xeon servers into a very small 3U form factor. Read the full review to find out more!

READ THE RULL REVIEW HERE
