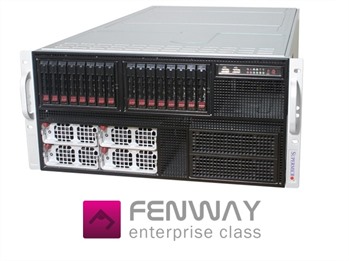

Boston Fenway 1580-06

Product Overview

Contact us for pricing

Powered by up to 80 Intel® Xeon™ E7-8800 cores and up to a phenominal 2TB of DDR3 memory, the Boston Fenway 1580-06 is a true enterprise workhorse platform delivering exceptional levels of hybrid compute performance combined with essential RAS features for mission critical applications; all contained within a single 5U rack mount enclosure.

BOS-FX8-1580-06

Built to Order


Boston Fenway 1580-06

Powered by up to 80 Intel® Xeon™ E7-8800 cores and up to a phenominal 2TB of DDR3 memory, the Boston Fenway 1580-06 is a true enterprise workhorse platform delivering exceptional levels of hybrid compute performance combined with essential RAS features for mission critical applications; all contained within a single 5U rack mount enclosure.

The Boston Fenway 1580-06 also includes 10 PCI-E 2.0 expansion slots, Gold Level 80 Plus efficiency redundant power supplies, IPMI remote management, KVM over IP access and up to 24 x 2.5” S-ATA / SAS hot-swap hard or solid state disk support allowing for maximum expandability, availability, serviceability, and I/O performance.

Equipped with 8 Intel® Xeon™ E7 10 core CPU's there are an astounding total of 80 physical or 160 virtual cores to satisfy even the most compute intensive workloads. For GPGPU accelerated workloads, the Boston Fenway 1580-06 can support up to 4 x NVIDIA® M2090 Fermi™ compute cards with 512 cores and 6GB of memory each, together adding 2048 processing cores and 24GB of memory.

This highly scalable and reliable, high performance x86 class server is designed to provide a balanced architecture for large data intensive and diverse technical computation applications. It is ideal for demanding mission critical and enterprise applications such as large database, OLTP, server consolidation, virtualization, and cloud infrastructure environments for complex workloads.

The Boston Fenway 1580-06 is also designed for high performance in-memory database, business intelligence/continuity, ERP, CRM, virtualization, CAD, EDA tools and 3D applications.



Key Features

High Density 5U 8-Way Server 8x Intel® Xeon® E7-8870 Processors 4 x NVIDIA Tesla C2075 GPU Processing Cards 128GB DDR-3 Reg ECC DIMM - up to 2TB Max Option 4 x PCI-E 2.0 x16 + 2x PCI-E 2.0 x8 (in x16 slot) or 10x PCI-E 2.0 x8 FH/FL Slots Dual Gigabit Ethernet LAN ports 8 x 2.5" 600GB 10K RPM SAS HDDs with RAID 0/1/5/10/50/60 Support Up to 24x 2.5" HDDs with optional HDD & RAID module Onboard BMC Supporting IPMI 2.0 + KVM over IP with Dedicated LAN 2800W Hot-Swap (2+2) Redundant Gold Level Certified High-Efficiency Power Supplies Hot Swap Cooling Fans



Request more information Send to a friend View all servers

  • BIOS Features

    ACPI 1.0
    ACPI 2.0
    ACPI 3.0
    PCI 2.2
    Plug and Play (PnP)
    USB keyboard support

  • BIOS Type

    32Mb SPI Flash EEPROM with AMI UEFI BIOS

  • Chipset

    2 x Intel 7500 (Boxboro-EX)

  • Chipset I/O Controller

    ICH10R

  • Colour

    Black

  • CPU Family

    Intel Xeon

  • CPU Manufacturer

    Intel

  • CPU Model

    E7-8870

  • CPU Quantity (Installed)

    8

  • CPU Quantity (Maximum)

    8

  • CPU Series

    Intel Xeon E7-8800

  • CPU Socket

    Intel LGA 1567

  • CPU Speed

    2.4 GHz

  • Drive Bays

    2 x 5.25" Peripheral
    16 x 2.5" Hot-swap SAS/SATA
    24 x 2.5" Hot-swap SAS/SATA (Optional)

  • Drive Support

    SAS
    SATA

  • Expansion Slots

    2 x (x8) PCI-E 2.0
    4 x (x16) PCI-E 2.0
    10 x PCI-E 2.0

  • Form Factor

    5U

  • GPU Family

    Matrox G-Series

  • GPU Manufacturer

    Matrox

  • GPU Memory Sizes

    16MB

  • GPU Model

    Matrox G200eW

  • HDD's (Installed)

    8 x 600GB WD 10K SAS

  • Input/Output

    1 x Fast UART 16550 serial header
    1 x Fast UART 16550 serial port
    1 x VGA port
    3 x RJ45 LAN ports
    6 x SATA2 ports
    8 x USB 2.0 ports

  • Management

    IPMI 2.0
    Winbond WPCM450 BMC

  • Manufacturer

    Boston

  • Memory (Installed)

    128GB DDR3 1333 ECC Registered Low-Profile

  • Memory (Maximum)

    2TB

  • Memory Speed

    1333MHz

  • Memory Type

    DDR3

  • Network Adapter

    Intel 82576 Dual-Port Gigabit
    Realtek RTL8201N PHY (dedicated IPMI)

  • Network Ports

    2

  • Network Socket

    1 x RJ45 Dedicated IPMI LAN port
    RJ45

  • Product Range

    Boston Fenway

  • PSU Output Capacity

    2800 Watts

  • RAID Support (SATA)

    RAID 0
    RAID 1
    RAID 5 (Windows only)
    RAID 10

  • Redundant Power Supply?

    Yes

  • SATA Controller

    Intel ICH10R

  • System Bus

    QPI (up to 6.4 GT/s)

  • System Cooling

    2 x Hot-Swap Rear Exhaust Fan
    4 x CPU card air shrouds for SC758
    4 x Hot-Swap Cooling Fans
