Posted on 25 June, 2017
Boston’s AMD EPYC™ server series, built on Supermicro® building blocks, has the fastest memory available. AMD have adopted the SoC (system on a chip) approach, meaning a separate chipset component is not required for general purpose IO, meaning saving on overall energy consumption reducing component footprint on the motherboard and ultimately a saving in cost.
The new AMD EPYC™ 7000 Series SoC-based solutions offer new levels of optimized performance per watt per dollar, and deliver outstanding core density, superior memory bandwidth, and unparalleled I/O capacity.
For more information on any product click the images below.

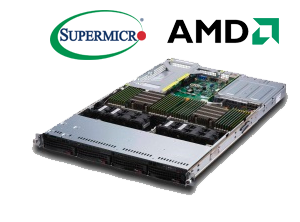

1U Solution - AS-1023US-TR4
- Dual AMD EPYC 7000-series processors; system on chip (soc)
- Up to 4TB registered ECC DDR4 2666MHz SDRAM in 32 DIMMS
- Expansion slots: 2 x PCI-E x16 (FH/HL 9.5") slots, 2 x PCI-E x8 slots (1 LP, 1 internal LP)
- Integrated IPMI 2.0 + KVM with dedicated LAN
- Quad Gigabit LAN ports via Intel i350AM4
- Drive bays: 4 x hot-swap 3.5" SATA3 by default or 4 x NVMe (optional supported) or 4 x SAS3 ports (SAS add-on card is optional)
- 1000w redundant (1+1) power supplies, Titanium level (96%+)
1U Solution - AS-1123US-TR4
- Dual AMD EPYC 7000-series processors; system on chip (soc)
- Up to 4TB registered ECC DDR4 2666MHz SDRAM in 32 DIMMS
- Expansion slots: 2 x PCI-E x16 (FH/HL 9.5") slots, 2 x PCI-E x8 slots (1 LP, 1 internal LP)
- Integrated IPMI 2.0 + KVM with dedicated LAN
- Quad Gigabit LAN ports via Intel i350AM4
- Drive bays: 10 x hot-swap 2.5" SATA3 by default or 8 x SATA3 + 2 x NVMe (optional), or 8 x SAS3 ports + 2 x SATA3 (SAS add-on card is optional)
- 1000w redundant (1+1) power supplies, Titanium level (96%+)

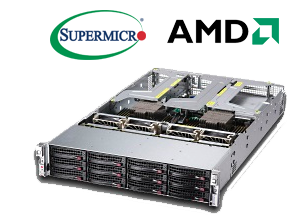

2U Solution - AS-2023US-TR4
- Dual AMD EPYC 7000-series processors; system on chip (soc)
- Up to 4TB registered ECC DDR4 2666MHz SDRAM in 32 DIMMS
- Expansion slots: 1 x PCI-E 3.0 x16 slot (FH 10.5" L), 5 x PCI-E 3.0 x8 slots (FH, 9.5” L), 1 x PCI-e 3.0 x8 slot (LP), 1x PCI-e 3.0 x8 (Internal LP)
- Integrated IPMI 2.0 + KVM with dedicated LAN
- Quad Gigabit LAN ports via Intel i350AM4
- 12 x hot-swap 3.5" drive bays: 12 x SATA3 by default or 8 x SATA3 + NVMe (optional supported), or 12 x SAS3 (SAS add-on card is optional)
- 1600w redundant (1+1) power supplies, Titanium level (96%+)
