Overview

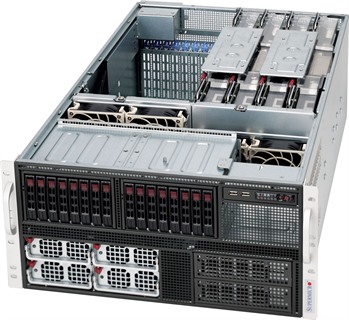

Supermicro expands its Enterprise class server technology by offering the next-generation 8-Way SuperServer® 5086B-TRF that hosts up to 2TB of DDR3 memory in 64 DIMMs, 10 PCI-E 2.0 expansion slots, Gold Level power supplies, and up to 24 2.5" hot-swap HDD/SSDs in a 5U rack-mount enclosure to deliver exceptional density. This highly scalable and reliable, high performance x86 class server is designed to provide a balanced architecture for large data intense and diverse technical computation applications. It is ideal for demanding enterprise applications such as large database, OLTP, server consolidation, virtualization, and cloud infrastructure environments for complex workloads.
The SuperServer® 5086B-TRF server is powered by 8 Intel® Xeon® processor 7500 series (8-Core) or new generation Intel® Xeon® processors E7-8800 family (10-Core) with large memory footprint and exceptional I/O expandability. Additional features include redundant power supplies, hot-swap HDDs, server management through IPMI 2.0, which are required for mission critical applications.
The SuperServer® 5086B-TRF 8-Way servers along with our 4-Way Enterprise class SuperServer® designs offers the most complete, highly optimized Building Block Solutions®, providing our customers the best ROI for Data Center expansion, consolidation or refresh.
Key Features
- Highest Density 5U 8-Way Server; Super-High Computing Performance
- 8x Intel® Xeon® 8-core 7500* series and 10-core E7-8800 family processors supported
- 64x DIMM slots (16GB DDR3) support up to 2TB Reg. ECC SDRAM**
- 4x PCI-E 2.0 x16 + 2x PCI-E 2.0 x8 (in x16 slot) or 10x PCI-E 2.0 x8 full-height full-length slots
- Dual Gigabit Ethernet LAN ports
- 16x 2.5" HDDs and 2x 5.25" devices; up to 24x 2.5" HDDs with optional HDD module***
- 6x SATA2 ports onboard
- Onboard BMC supports IPMI 2.0 + KVM with dedicated LAN
- 6x 9cm Hot-swap cooling fans
- 2800W hot-swap (2+2) redundant high-efficiency power supplies Gold Level Certified
