Product Overview
£1,063.13 (ex VAT) | £1,275.76 (inc VAT)

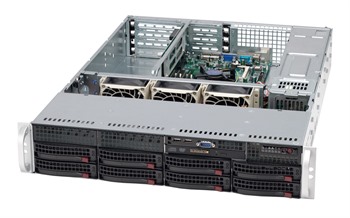

Designed by industry leaders Supermicro, the 5025M is a server capable of a wide variety of tasks. Supporting the latest Xeon, Pentium and Celeron processors, these servers offer the very best in performance, power-efficiency and reliability.
Based on the PDSMU mainboard you’re sure to get the most from this package. With Intel dual PCI-E gigabit controllers, 3 x8 PCI-E slotS, 8 x 3.5” hot swap drive trays and a 700w high-efficiency power supply, this feature packed server offers the latest technology in a sleek form factor at an affordable price.
Key Features
Intel 3010 (Mukilteo-2P) Chipset Xeon 3200/3000 Series, Pentium D, Pentium Extreme Edition, Pentium 4, & Celeron D in LGA775 Package (FSB 1066/800/533) Up to 8GB unbuffered ECC / non-ECC DDR2 667/533 SDRAM 1 Universal I/O (UIO) Slot, 3 PCI-E x8 (Full-height / Full-length) Expansion Slots Intel 82573V + Intel 82573L PCI-e Gigabit Ethernet Controllers 8 x 3.5" Hot-swap Drives Trays 700W High-efficiency Redundant Power Supply
-
Backplane
1 x 2U SAS/SATA backplane
-
BIOS Features
ACPI 1.0
DMI 2.3
PCI 2.2
Plug and Play (PnP)
SMBIOS 2.3
USB keyboard support
-
BIOS Type
8MB Flash EEPROM with Phoenix
-
Buttons
Power On/Off button
System Reset button
-
Chipset
Intel 3010 (Mukilteo 2)
-
Chipset I/O Controller
ICH7R
PXH
-
Colour
Black
-
CPU Family
Intel Celeron
Intel Pentium
Intel Xeon
-
CPU Manufacturer
Intel
-
CPU Quantity (Maximum)
1
-
CPU Series
Intel Celeron D
Intel Pentium 4
Intel Pentium D
Intel Pentium Extreme
Intel Xeon 3000
Intel Xeon 3200
-
Drive Bays
8 x 3.5" Hot-swap SATA
-
Drive Support
IDE
SATA
-
Expansion Slots
1 x UIO
3 x (x8) PCI-E Slots (Full-height / Full-length)
-
Form Factor
2U
-
GPU Family
ATI Radeon ES1000
-
GPU Manufacturer
AMD (ATI)
-
GPU Memory Sizes
16MB
-
GPU Model
Radeon ES1000
-
Input/Output
1 x EIDE channel
1 x Floppy controller
1 x PS/2 keyboard port
1 x PS/2 mouse port
1 x Serial Header
1 x Serial Port
1 x VGA port
4 x SATA ports
6 x USB 2.0 / 1.1 ports
-
LED indicators
2 x Network activity LEDs
Hard drive activity LED
Power fail LED
Power status LED
System Overheat LED
-
Management
IPMI 2.0
Optional: AOC-SIMSO+
-
Manufacturer
Supermicro
-
Memory (Maximum)
8GB
-
Memory Sizes
1GB
2GB
256MB
512MB
-
Memory Slots
4
-
Memory Speed
533MHz
667MHz
-
Memory Type
DDR2 Unbuffered ECC SDRAM
DDR2 Unbuffered Non-ECC SDRAM
-
Memory Voltage
1.8V
-
Network Adapter
Intel 82573L Gigabit PCI-E
Intel 82573V Gigabit PCI-E
-
Network Ports
2
-
Network Socket
RJ45
-
Number of Nodes
1
-
Peripheral Drives
Slim 1.44MB Floppy Drive (Optional)
Slim 8x DVD, 24x CD, DVD-ROM Drive
-
Power Factor Correction
Active PFC
-
PSU Output Capacity
700 Watts
-
RAID Support (SATA)
RAID 0
RAID 1
RAID 5
RAID 10
-
SATA Controller
Intel ICH7R SATA2 3Gbps
-
System Bus
533MHz
800MHz
1066MHz
-
System Cooling
1 x Air Shroud
3 x 80mm 6300 RPM fans
