Product Overview
£788.00 (ex VAT) | £945.60 (inc VAT)

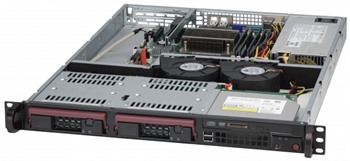

Designed by industry leaders Supermicro, the 5017C-TF is a server capable of a wide variety of tasks. Capable of supporting the Intel® Xeon® E3-1200 & v2 series processors, as well as the 2nd Gen Core i3 processors, these servers offer the very best in performance, power-efficiency and reliability.
Designed by industry leaders Supermicro, the 5017C-TF is a server capable of a wide variety of tasks. Capable of supporting the Intel® Xeon® E3-1200 & v2 series processors, as well as the 2nd Gen Core i3 processors*, these servers offer the very best in performance, power-efficiency and reliability.
Based on the X9SCL-F mainboard that holds upto 32GB of DDR3 DIMM, you're sure to get the most from this package. With Intel 82579LM and 82574L gigabit LAN ports, onboard Nuvoton WPCM450RA0BX graphics, 2 x 3.5" hot-swap SATA2/3 drive bays and a 350 watt gold level high-efficiency power supply, this feature packed server offers the latest technology in a sleek form factor at an affordable price.
* BIOS rev. 2.0 or above is needed to support new E3-1200 v2 CPUs, which supports PCI-E 3.0 & DDR3 1600.
Key Features
Single socket H2 (LGA 1155) supports Intel® Xeon® E3-1200 & v2 series, 2nd Gen Core i3 processors* Intel® C204 PCH Chipset 2x 3.5" Hot-swap SATA2/3 HDDs 1x PCI-E 3.0* x8 FHFL slot Up to 32GB DDR3 ECC 1333MHz / 1600MHz* UDIMMs in 4 sockets Intel® 82579LM and 82574L, 2x Gigabit Ethernet LAN ports IPMI 2.0 on Dedicated LAN port 4x SATA 2.0 with RAID 0, 1, 5, 10 and 2x SATA 3.0 with RAID 0, 1, 5, 10 350W Gold Level Power Supply 1x Slim DVD-ROM Drive Disk-on-module (DOM) power connector
-
Backplane
1 x 1U SAS/SATA backplane w/ SES2
-
BIOS Features
ACPI 1.0
ACPI 2.0
DMI 2.3
PCI 2.3
SMBIOS 2.3
USB keyboard support
-
BIOS Type
32MB SPI Flash EEPROM with AMI UEFI BIOS
-
Buttons
Power On/Off button
System Reset button
-
Chipset
Intel C202 PCH
-
Colour
Black
-
CPU Family
Intel Core i3
Intel Xeon E3
-
CPU Manufacturer
Intel
-
CPU Quantity (Maximum)
1
-
CPU Series
Intel 2nd Generation Core i3
Intel Xeon E3-1200 v2
-
CPU Socket
Socket H2 (LGA 1155)
-
Drive Bays
2 x 3.5" Hot-swap SAS/SATA
-
Drive Support
SATA
-
Error Detection
Corrects single-bit errors
Detects double-bit errors (using ECC memory)
-
Expansion Slots
1 x (x8) PCI-E 3.0
-
Form Factor
1U
-
Front Panel I/O
2 x USB Ports
-
GPU Manufacturer
Nuvoton
-
GPU Model
WPCM450RA0BX
-
Input/Output
1 x Fast UART 16550 serial header
1 x Fast UART 16550 serial port
1 x PS/2 keyboard port
1 x PS/2 mouse port
1 x RJ45 Dedicated IPMI LAN port
2 x RJ45 LAN ports
2 x SATA 3.0 ports
4 x SATA 2.0 ports
6 x USB 2.0 / 1.1 ports
-
LED indicators
2 x Network activity LEDs
Hard drive activity LED
Power status LED
System Overheat LED
-
Management
IPMI 2.0
Nuvoton WPCM450 BMC
-
Manufacturer
Supermicro
-
Memory (Maximum)
32GB
-
Memory Sizes
1GB
2GB
4GB
8GB
-
Memory Slots
4
-
Memory Speed
800MHz
1066MHz
1333MHz
1600MHz
-
Memory Type
DDR3 Unbuffered Non-ECC UDIMM
-
Memory Voltage
1.5V
-
Network Adapter
1 x Intel 82574L Gigabit Ethernet
1 x Intel 82579LM Gigabit Ethernet
-
Network Ports
2
-
Network Socket
1 x RJ45 Dedicated IPMI LAN port
RJ45
-
Peripheral Drives
Slim DVD-ROM Drive (optional)
-
PSU Output Capacity
330 Watts
-
RAID Support (SATA)
RAID 0
RAID 1
RAID 5
RAID 10
-
System Cooling
1 x Air Shroud
3 x Cooling Fans
4 x 4cm cooling fans
