Overview

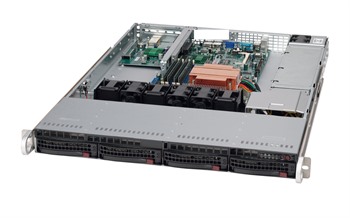

Designed by industry leaders Supermicro, the 5015M is a server capable of a wide variety of tasks. Supporting a wide range of Xeon, Pentium and Celeron processors, these servers offer the very best in performance, power-efficiency and reliability.
Based on the PDSMU mainboard and with onboard ATI ES1000 graphics, you’re sure to get the most from this package. With Intel dual PCI-E gigabit controllers, a x8 PCI-E slot, 4 x 3.5” hot-swap SATA drive bays and a 560W high efficiency power supply, this feature packed server offers the latest technology in a sleek form factor at an affordable price.
Key Features
- Intel 3010 (Mukilteo-2P) Chipset
- Intel Xeon 3200 / 3000 Series, Core 2 Quad / Duo / Extreme Series, Pentium D, Pentium Extreme Edition, Pentium 4 & Celeron D in LGA775 Package (FSB 1066/800/533)
- Up to 8GB unbuffered ECC / non-ECC DDR2 667/533MHz SDRAM
- Left Slot (Full-height / Full-length): 2 (x8) PCI-Express
- Right Slot (Low-Profile): 1 (x4) PCI-Express (in x8 Slot)
- 2x Intel 82573L PCI-e Gigabit LAN
- On board ATI ES1000 Graphics
- 4x 3.5" Hot-swap Drive Bays For customizable Storage
- 560W Power Supply
