Overview

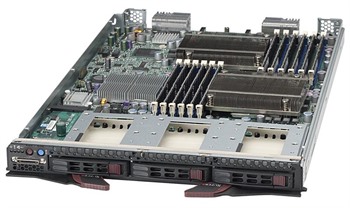

The innovative SuperBlade offers enhanced system computing density leveraged from years of rackmount server design experience. Applying Supermicro's application-optimized engineering philosophy, each SuperBlade module delivers true server functionality including up to four processors (in select models), optional InfiniBand mezzanine HCA, and supports either SATA or SAS hard drives.
Key Features
- Dual Intel 5500 series Xeon Quad/ Dual-Core, with QPI up to 6.4 GT/s and 95W
- Intel 5500 (Tylersburg) Chipset
- Up to 96GB VLP DDR3 1333/ 1066/ 800MHz ECC Registered DIMM / 24GB Unbuffered DIMM
- Intel 82576 Dual-Port Gigabit Ethernet
- LSI 2008 SAS2 Controller; RAID 0, 1, 10; RAID 5 optional
- 3x 2.5" Hot-Plug SAS/SATA Drive Trays
- Integrated Matrox G200eW Graphics
