Overview

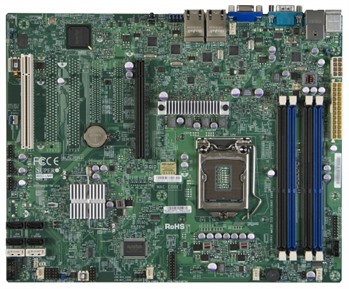

Built by award winning industry experts Supermicro, the X9SCI-LN4F is the perfect motherboard for those looking for a powerful desktop computing solution.
Capable of supporting the Intel 2nd Gen i3 processor, this board can hold up to 32GB of dual channel DDR3 DIMM. With 4 x Intel 82574L LAN ports, onboard Matrox G200eW graphics, a x16 PCI-E 2.0 expansion slot, PCI 32-bit expansion slot and a built in SATA2 controller offering support for upto 6 SATA drives at 3.0Gbps, this is a must have for those seeking to build high performing desktop systems.
Key Features
- Single socket H2 (LGA 1155) supports Intel® Xeon® E3-1200 family, Intel® 2nd Generation Core i3 & Intel® Pentium® family processors
- Intel® C204 PCH Chipset
- Up to 32GB DDR3 ECC 1333MHz UDIMMs in 4 sockets
- 1 (x16) PCI-E 2.0 slot and 1 PCI 32-bit slot
- Quad LAN, 4x GbE LAN ports; Intel® 82574L
- 4x SATA (3Gbps) w/ RAID 0, 1, 5, 10; 2x SATA (6Gbps) w/ RAID 0, 1
- 8x USB 2.0 ports (2 rear + 6 via headers)
- DOM power connector support
- Integrated IPMI 2.0 with KVM and Dedicated LAN
