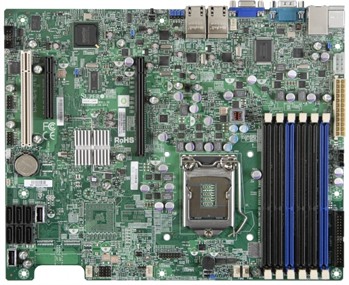

Supermicro X8SIE-LN4

Overview

Specifications

Compatible Products

Browse images Next image

Image for illustration purposes only

Continue Browsing
View more products from Supermicro

Overview

BIOS Features	ACPI 1.0
	ACPI 2.0
	DMI 2.3
	PCI 2.2
	SMBIOS 2.3
	USB keyboard support
BIOS Type	32Mb SPI Flash EEPROM with AMI BIOS
Chipset	Intel 3420 (Ibex Peak)
CPU Family	Intel Celeron
	Intel Core i3
	Intel Pentium
	Intel Xeon
CPU Manufacturer	Intel
CPU Notes	Only supports the following Intel Celeron CPUs: G1101
CPU Notes	Only supports the following Intel Pentium CPUs: G6950
CPU Quantity (Maximum)	1
CPU Series	Intel Xeon L3400
CPU Series	Intel Xeon X3400
CPU Socket Type	Intel LGA 1156
Drive Support	SATA
Error Detection	Corrects single-bit errors
Error Detection	Detects double-bit errors (using ECC memory)
Expansion Slots	1 x (x4) PCI-E (using x8 slot)
Expansion Slots	1 x (x8) PCI-E 2.0 (using x16 slot)
Form Factor	ATX
GPU Family	Matrox G-Series
GPU Manufacturer	Matrox
GPU Memory Sizes	16MB
GPU Model	Matrox G200eW
Input/Output	1 x PS/2 keyboard port
	1 x PS/2 mouse port
	1 x RJ45 Dedicated IPMI LAN port
	1 x Serial Header
	1 x Serial Port
	1 x VGA port
	2 x RJ45 LAN ports
	6 x SATA ports
	8 x SAS ports
	8 x USB 2.0 ports
Manufacturer	Supermicro
Memory (Maximum)	32GB
Memory Sizes	1GB
	2GB
	4GB
	8GB
Memory Slots	6
Memory Speed	800MHz
	1066MHz
	1333MHz
Memory Type	DDR3 Registered ECC SDRAM
	DDR3 Unbuffered ECC SDRAM
	GDDR3
Memory Voltage	1.5V
Network Adapter	1 x Realtek RTL8201N PHY (dedicated IPMI)
Network Adapter	2x Intel 82574L Gigabit Ethernet Controllers
Packaging	Retail
RAID Support (SAS)	RAID 0
	RAID 1
	RAID 5
	RAID 10
RAID Support (SATA)	RAID 0
	RAID 1
	RAID 5 (Windows only)
	RAID 10
System Bus	QPI (up to 6.4 GT/s)
