Overview

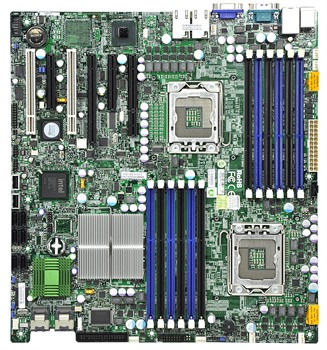

Built by industry leaders Supermicro, the X8DT3-F is the perfect motherboard of choice for high end computing. Providing the ultimate in power and performance, this is a must have for those who need the edge in processing.
With support for Intel 5600/5500 series processors and capable of supporting a massive 192GB of DDR3 RAM, this will quickly handle even the most difficult of tasks. By using the high performance Intel 5520 Tylersburg chipset and Intel's QuickPath Interconnect, this extended ATX board can achieve an astonishing 6.4 GT/s of raw data transfer. Add in an 8-port SAS controller, 6 SATA ports at 3.0 Gbps via an ICH10R controller and 2 (x16) PCI-E 2.0 slots this becomes a must buy for the discerning user looking to create a world class workstation or server solution.
Key Features
- Intel Xeon processor 5600/5500 series, with QPI up to 6.4 GT/s
- Intel 5520 (Tylersburg) Chipset
- Up to 192GB DDR3 1333/1066/800MHz ECC Registered DIMM / 48GB Unbuffered DIMM
- Intel 82576 Dual-Port Gigabit Ethernet
- LSI 1068E 8-Port SAS Controller; RAID 0, 1, 10; RAID 5 optional
- 6x SATA2 (3 Gbps) Ports via ICH10R Controller
- 3 (x8) PCI-E 2.0 (1 in x16 slot), 1 (x4) PCI-E, 2x PCI 33MHz slots
- Integrated Matrox G200eW Graphics
- Integrated IPMI 2.0 with Dedicated LAN
