Overview

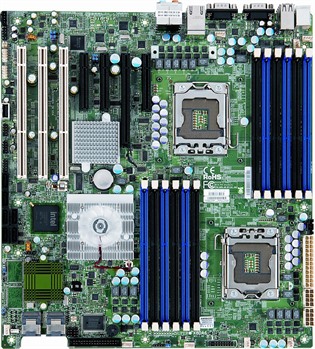

Built by award winning industry experts Supermicro, the X8DA6 is the perfect motherboard for those looking for a powerful desktop computing solution.
Capable of supporting Intel Xeon 5600/5500 series processors, this board can hold up to 192GB of dual channel DDR3 SDRAM. With a dual Intel Gigabit LAN port, onboard Realtek ALC888 7.1 HD audio, 1 x16 PCI-E expansion slot and a built in SATA2 controller offering support for up to 6 SATA drives at 3.0Gbps, this is a must have for those seeking to build high performing desktop systems.
Key Features
- Intel Xeon processor 5600/5500 series, with QPI up to 6.4 GT/s
- Intel 5520 (Tylersburg) Chipset
- Up to 192GB DDR3 1333/1066/800MHz ECC Registered DIMM / 48GB Unbuffered DIMM
- Dual Intel 82574L Gigabit Ethernet
- 6x SATA2 (3Gbps) Ports via ICH10R Controller
- 1 (x16) PCI-E 2.0, 2 (x4) PCI-E 2.0 (in x 8 slot), 1 (x4) PCI-E (in x 8 slot), 3x PCI-X 133/100MHz slots
- Realtek ALC888 7.1 HD Audio
- 2x IEEE 1394a Headers
- LSI 2008 8-Port 6Gbps SAS Controller; RAID 0, 1, 10; RAID 5 optional
