Overview

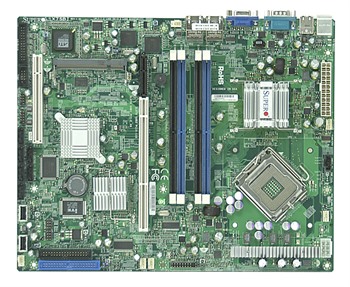

Created by industry leaders Supermicro, the world class X7SBI mainboard delivers power, rock solid performance and unparalleled versatility all in one sleek package.
Based on Intel’s 3210 + ICH9 chipset and providing support for upto 8GB of unbuffered DDR2 SDRAM, this supports a variety of processors in the LGA 775 package (Intel Xeon, Core2Duo, Core2Quad.) Included onboard are dual Intel PCI-E gigabit controllers, built in SATA ICH9R controllers with support for 6 x SATA (3.0 Gbps) drives, IPMI 2.0 providing for virtual media over LAN, and integrated XGI Z9S graphics (32MB) making this a dynamic and adaptable mainboard for whatever your computing needs.
Key Features
- Intel® Xeon® 3000 Sequence and Core™ 2 Quad / Duo Series in LGA775 Package (FSB 1333/1066/800 MHz)
- Intel® 3210 + ICH9R Chipset
- Up to 8GB unbuffered ECC / non-ECC DDR2 800/677 SDRAM
- Intel® 82573V + Intel® 82573L PCI-E Gigabit Controllers
- Built-in SATA ICH9R Controller 6x SATA (3 Gbps) Drive with RAID 0, 1, 5, 10 Support
- 1 Universal (x8) PCI-Express 1 64 bit PCI-X 1 32 bit PCI
- On board ATI ES1000 32MB Graphics
- IPMI 2.0 (Virtual Media Over LAN or Optional KVM Over LAN)
