Overview

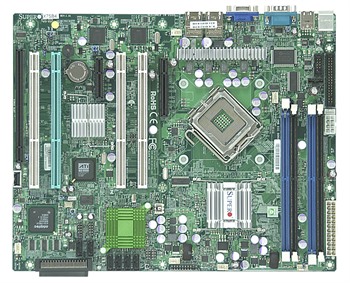

Created by industry leaders Supermicro, the world class X7SB4 mainboard delivers power, rock solid performance and unparalleled versatility all in one sleek package.
Based on Intel’s 3210 + ICH9 chipset and providing support for upto 8GB of unbuffered DDR2 SDRAM, this supports a variety of processors in the LGA 775 package (Intel Xeon, Core2Duo, Core2Quad.) Included onboard are dual Intel PCI-E gigabit controllers, an adaptec controller providing single channel Ultra320 SCSI support, built in SATA ICH9 controllers with support for 6 x SATA (3.0 Gbps) drives and integrated ATI ES1000 graphics (32MB) making this a dynamic and adaptable mainboard for whatever your computing needs.
Key Features
- Intel® Xeon® 3000 Sequence and Core™ 2 Quad / Duo Series in LGA775 Package (FSB 1333/1066/800 MHz)
- Intel® 3210 + ICH9R Chipset
- Up to 8GB unbuffered ECC or non-ECC DDR2 800/667 SDRAM
- Intel® 82573V + Intel® 82573L PCI-E Gigabit Controllers
- Adaptec AIC-7901 Single Channel Ultra320 SCSI (ZCR-Support)
- Built-in SATA ICH9R Controller 6x SATA (3 Gbps) Drive with RAID 0, 1, 5, 10 Support
- 1 (x8) PCI-Express, 1 (x4) PCI-Express, 2 64 bit 133MHz PCI-X, 2 64 bit 100MHz PCI-X
- On board ATI ES1000 32MB Graphics
- SIM1U IPMI 2.0
