Overview

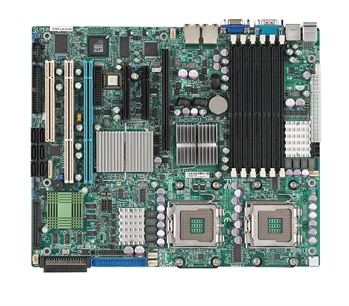

Designed and manufactured by industry leaders Supermicro, the X7DVA board is the only choice for those seeking to create the ultimate workstation, delivering leading edge performance and power in a sleek and streamlined package.
Based on the Intel 5000V Blackford VS chipset and supporting upto 24GB of DDR2 RAM, this board can handle Quad and Dual core 64-bit Xeons giving you maximum performance for all your processing needs. With dual port ethernet controllers, adaptec dual channel Ultra320 SCSI, ATI ES1000 graphics with 32MB video memory and 6 SATA ports via an ESB2 controller, this incredibly versatile and adaptable mainboard will provide outstanding performance for whatever your server or workstation needs.
Key Features
- ATX Form Factor
- Intel 5000V (Blackford VS) Chipset
- Quad & Dual Core Intel 64-bit Xeon Support, 667 / 1066 / 1333MHz FSB
- Up to 24GB DDR2 667 & 533 SDRAM Fully Buffered DIMM (FB-DIMM)
- Intel (ESB2/Gilgal) 82563EB Dual-port Gigabit Ethernet Controller
- Adaptec AIC-7902 Dual Channel Ultra320 SCSI with HostRAID 0, 1, 10
- 6x SATA 3.0Gbps Ports via ESB2 Controller
- 1 (x8) & 1 (x4) in (x8) PCI-Express, 2x 64-bit 100MHz PCI-X, 1x 32-bit 33MHz PCI
- ATI ES1000 Graphics with 16MB video memory
- IPMI 2.0 (SIMLP) Slot
