Overview

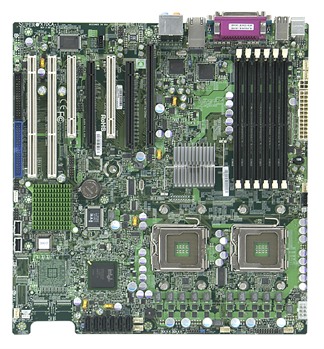

Designed and manufactured by industry leaders Supermicro, the X7DCA board is the only choice for those seeking to create the ultimate system, delivering leading edge performance and power in a sleek and streamlined package.
Based on the Intel 5100 San Clemente chipset and supporting upto 48GB of DDR2 RAM, this board can handle Quad and Dual core 64-bit Xeons giving you maximum performance for all your processing needs. With a dual port gigabit Ethernet controller, high definition 7.1 surround sound audio, a 16x PCI-Express slot, and 6 SATA ports via an ESB2 Controller, this incredibly versatile and adaptable mainboard will provide outstanding performance for whatever your workstation needs.
Key Features
- Extended ATX Form Factor
- Intel 5100 (San Clemente) Chipset
- Dual Intel 64-bit Xeon Quad-Core or Dual-Core, with 1333 / 1066 MHz FSB
- Up to 48GB 667/533MHZ DDR2 Register SDRAM
- Intel Dual 82573V/L Gigabit Ethernet Controller
- 6x SATA2 (3 Gbps) Ports via ICH9R SB Controller
- 1 (x16) PCI-e, 1 (x4) PCI-e (using x16 slot), 2x PCI-X 133/100MHz, 2x PCI 33MHz slots
- High Definition 7.1 Channel Audio
- Low Profile IPMI 2.0 (SIMLP) Slot
