Overview

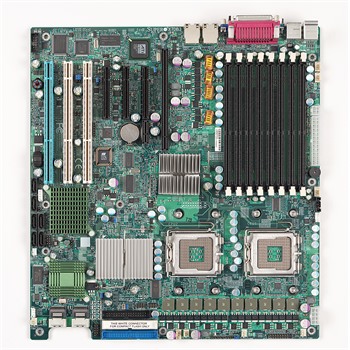

Designed and manufactured by industry leaders Supermicro, the X7DB3 board is the only choice for those seeking to create the ultimate system, delivering leading edge performance and power in a sleek and streamlined package.
Based on the Intel 5000P Blackford chipset and supporting upto 64GB of DDR2 RAM, this board can handle Quad and Dual core 64-bit Xeons giving you maximum performance for all your processing needs. With a Dual port gigabit Ethernet controller, an 8 port adaptec dual channel SAS controller, 6 SATA ports via an ESB2 Controller, 2 PCI-E x8 slots and ATI ES1000 graphics with 16mb video memory, this incredibly versatile and adaptable mainboard will provide outstanding performance for whatever your workstation needs.
Key Features
- Extended ATX Form Factor
- Intel 5000P (Blackford) Chipset
- Quad & Dual Core Intel 64-bit Xeon Support, 667 / 1066 / 1333MHz FSB
- Up to 32GB DDR2 667 & 533 SDRAM Fully Buffered DIMM (FB-DIMM)
- Intel (ESB2/Gilgal) 82563EB Dual-port Gigabit Ethernet Controller
- Adaptec AIC-9410 Dual-Channel SAS Controller, 8-port
- 6x SATA 3.0Gbps Ports via ESB2 Controller
- 2 (x8) & 1 (x4) PCI-Express, 2x 64-bit 133MHz PCI-X, 1x 64-bit 100MHz PCI-X
- Zero-Channel RAID Support
- ATI ES1000 Graphics with 16MB video memory
- LP IPMI 2.0 (SIMLP) Slot
