Overview

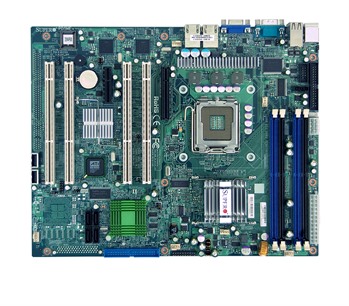

Designed by industry leaders Supermicro, the PDSME+ is the ultimate in server motherboards, offering unparalleled processing power.
Using the Intel E3010 Mukilteo chipset and supporting a wide range of processors in the LGA775 package alongside 8GB of DDR2 SDRAM, this board is more than capable of handling any task. With a built in SATA controller offering support for upto 4 drives, onboard ATI ES1000 graphics and an Intel PCI-e gigabit LAN port, this board is packed full of features, making your computing experience a breeze.
Key Features
- Intel® Xeon® 3200 / 3000 Series, Core™ 2 Quad / Duo / Extreme Series, Pentium® D, Pentium Extreme Edition, Pentium 4 & Celeron D in LGA775 Package (FSB 1066/800/533)
- Intel® 3010 (Mukilteo-2P) Chipset
- Up to 8GB unbuffered ECC / non-ECC DDR2 667/533 SDRAM
- Intel® 82573V + Intel® 82573L PCI-e Gigabit Controllers (2x LAN Ports)
- Built-in SATA Controller 4x SATA (3Gbps) Drive Support
- 1 (x4) & 1 (x8) PCI-Express 2x 64-bit 133MHz PCI-X 2x 64-bit 100MHz PCI-X
- On board ATI ES1000 16MB Graphics
- IPMI 2.0 (Virtual Media Over LAN or Optional KVM Over LAN)
