Boston Limited

Supermicro H8QG6-F

Overview

Specifications

Compatible Products

Browse images Next image

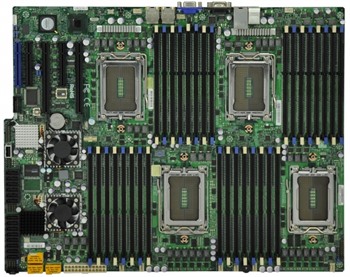

Image for illustration purposes only

Supermicro H8QG6-F

Manufacturer	Supermicro
Item #	MBD-H8QG6-F-O
Stock availability	Contact us for availability

E-mail a friend Request pricing or more information

Continue Browsing
View more products from Supermicro

Overview

Specifications

BIOS Features	ACPI 2.0
	DMI 2.3
	PCI 2.2
	Plug and Play (PnP)
	SMBIOS 2.3
	USB keyboard support
BIOS Type	16Mb SPI Flash ROM with AMI BIOS
Chipset	AMD SP5100
	AMD SR5670
	AMD SR5690
CPU Family	AMD Opteron
CPU Manufacturer	AMD
CPU Quantity (Maximum)	4
CPU Series	AMD Opteron 6000 (6300 ready)
CPU Socket Type	AMD Socket G34
Drive Support	SAS
Drive Support	SATA
Error Detection	Corrects single-bit errors
Error Detection	Detects double-bit errors (using ECC memory)
Expansion Slots	1 x UIO
	2 x (x8) PCI-E 2.0
	2 x (x16) PCI-E 2.0
Form Factor	Server Workstation Technology eXtended
GPU Family	Matrox G-Series
GPU Manufacturer	Matrox
GPU Memory Sizes	16MB
GPU Model	Matrox G200
Input/Output	1 x Fast UART 16550 port / 1 Header
	1 x PS/2 keyboard port
	1 x PS/2 mouse port
	1 x RJ45 Dedicated IPMI LAN port
	1 x SATA DOM port
	1 x TPM header
	1 x VGA port
	2 x RJ45 LAN ports
	6 x SATA 2.0 ports (3Gbps)
	7 x USB 2.0 ports
IPMI	IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
	Support for Intelligent Platform Management Interface v.2.0
	Winbond® WPCM450 BMC
LED indicators	+5V Standby Alert LED
LED indicators	CPU / System Overheat LED
Manufacturer	Supermicro
Memory (Maximum)	1TB
Memory Sizes	1GB
	2GB
	4GB
	8GB
	16GB
	32GB
Memory Slots	32
Memory Speed	1066MHz
	1333MHz
	1600MHz
Memory Type	DDR3 Registered ECC SDRAM
	DDR3 Unbuffered ECC SDRAM
	DDR3 Unbuffered Non-ECC SDRAM
Memory Voltage	1.5V
Memory Voltage	1.35V
Network Adapter	10/100/1000BASE-T support
Network Adapter	Intel 82576 Dual-Port Gigabit
Network Ports	2
Network Socket	(1x RJ45 Dedicated IPMI LAN port)
Network Socket	RJ45
Packaging	Retail
Power Management	ACPI Power Management
	Keyboard Wakeup
	Power-on mode for AC power recovery
	Wake-On-LAN header
RAID Support (SAS)	RAID 0
	RAID 1
	RAID 5 (Optional)
	RAID 10
RAID Support (SATA)	RAID 0
	RAID 1
	RAID 10
SAS Controller	LSI 2008 SAS2 controller
SATA Controller	AMD SP5100
Software Management	Optional IPMI 2.0
Software Management	SuperDoctor III
Super I/O	Winbond® W83527 chip
System Bus	HyperTransport 3.0
Tags	G34 (6300 ready)
