Overview

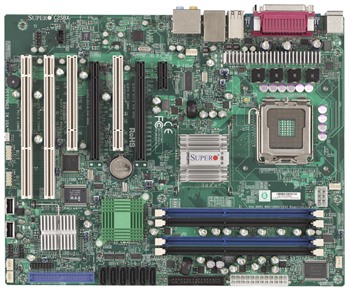

Built by award winning industry experts Supermicro, the C2SBX is the perfect motherboard for those looking for a powerful desktop computing solution
Capable of supporting a wide range of processors in the LGA 775 Package (including Core 2 Extreme, Quad, Duo) and based on the Intel X38+ICH9R chipset, this board can hold up to 8GB of dual channel DDR3 SDRAM. With an Intel PHY PCI-E Gigabit LAN port, High Definition 7.1 Channel audio, two x16 PCI-Express slots and a built in SATA2 controller offering support for upto 6 SATA drives at 3.0Gbps, this is a must have for those seeking to build high performing desktop systems.
Key Features
- Intel Core 2 Extreme, Quad, Duo processors in LGA775 Package (FSB 1333/1066/800)
- Intel X38 + ICH9R Chipset
- Up to 8GB dual channel unbuffered, ECC or non-ECC DDR3 1333/1066/800 SDRAM
- 1x Intel 82566 PHY PCI-e Gigabit LAN Port
- Built-in SATA2 Controller 6x SATA (3Gbps) Drive Support
- 2 (x16) PCI-Express 2.0, 1 (x1) PCI-e, 2x 64-bit 133 / 100MHz PCI-X, 2x 32-bit PCI, 2x IEEE 1394 headers
- High Definition 7.1 Channel Audio
- Total 12 USB 2.0 ports: 6 rear + 2 Type A connectors + 2 headers (4 ports)
