Areca 28-Port (6xSFF-8087 & 1xSFF-8088) PCIe x8 SAS RAID

Overview

Specifications

Browse images Next image

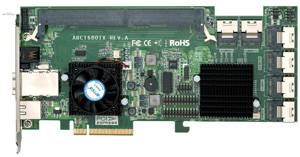

Areca 28-Port (6xSFF-8087 & 1xSFF-8088) PCIe x8 SAS RAID

Image for illustration purposes only

Areca 28-Port (6xSFF-8087 & 1xSFF-8088) PCIe x8 SAS RAID

Manufacturer	Areca
Item #	ARC-1680IX-24
Stock availability	Out of stock

£765.68 (ex VAT)

Continue Browsing
View more products from Areca

Overview
Specifications

Overview

Specifications

Adapter Architecture	Battery Backup Module (BBM) ready. ARC-6120BA-T1xx, xx means version no.
	BIOS boot support for greater fault tolerance
	BIOS PnP (plug and play) and BBS (BIOS boot specification) support
	Intel Dual Core 1200 MHz IOP348 I/O processor for RAID core and SAS microcode
	Multi-adapter support for large storage requirements
	NVRAM for RAID event & transaction log
	Redundant flash image for adapter availability
	Support 4 to 24 internal and 4 to 8 external SAS ports
	Support extreme performance RAID 6 function
	Write-through or write-back cache support
Cache	512MB
Compatible Operating Systems	Apple Mac OS 10.4.x
	Apple Mac OS 10.5.x
	Linux
	Microsoft Windows 7
	Microsoft Windows 2000
	Microsoft Windows Server 2003
	Microsoft Windows Vista
	Novell Netware 6.5
	Sun Solaris 10x86
	Unixware 7.x.x
Controller/IOP	Intel IOP348
Drive Support	SAS
Input/Output	8 x SAS ports
Interface	PCI-E x8
Manufacturer	Areca
Monitors/Indicators	I2C Enclosure management ready
	SMTP support email notification
	SNMP support for remote notification
	System status indication through HDD activity/fault connector, LCD Connector and alarm buzzer
Operating Temperature	-5°C ~ +50°C
RAID Management	API library for customer to write monitor utility
	Disk Stress Test (DST) utility for production in Windows
	Field-upgradeable firmware in flash ROM
	Firmware-embedded Browser-based RAID manager, SMTP manager, SNMP agent, and Telnet function
	Hot key boot-up McBIOS RAID manager via BIOS
	Single Admin Portal (SAP) monitor utility
	Support Command Line Interface (CLI)
	Support Push Button and LCD display panel
	Web browser-based McRAID storage manager via ArcHttp proxy server utility
RAID Support (SAS)	JBOD Support
	RAID 0
	RAID 1
	RAID 3
	RAID 5
	RAID 6
	RAID 10E
	RAID 30
	RAID 50
	RAID 60
	Single Disk
RAID Type	SAS
Regulatory	RoHS
Storage Temperature	-40°c ~ 70°c
