Overview
The Series 3 family of Adaptec Unified Serial™ (SATA/SAS) RAID controllers hits the sweet spot of flexibility and performance by supporting either high-capacity SATA drives, high-performance SAS drives, or both on a single system.

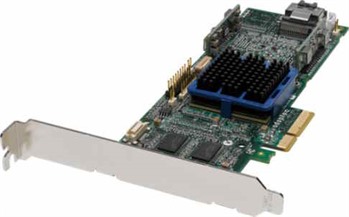

The Adaptec RAID 3405 features 500 MHz of processing power, a 128MB ECC-protected data cache, connectivity with x4 PCI-Express, and scalability up to 128 devices using SAS expanders.
The Adaptec RAID 3405 supports a wide range of operating systems, compatibility with more than 300 third-party devices, and full integration with Adaptec Storage Manager™ for centralized management of all Adaptec RAID controllers on the network.
Key Features
- 4 internal ports
- MD2 – Low profile form factor
- Intel 80333 500MHz processor
- 4-Lane PCI-Express bus interface
- RAID levels 0, 1,1E, 5, 5EE, 6, 10, 50, 60, JBOD
- 128MB cache
- Up to 128 SATA or SAS devices using SAS expanders scalability
- 1 SFF-8087 (int.) connectors
- Adaptec Storage Manager, Copyback Hot Spare
- Battery backup (optional)
- RoHS compliant
