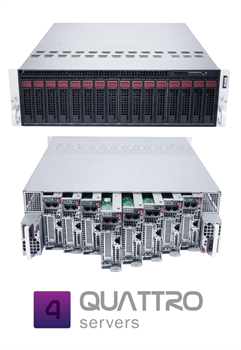

Boston Quattro 1332-T

Product Overview

Contact us for pricing

BOS-QX9-1332-T

Built to Order


Boston Quattro 1332-T

Boston's Cloud Compute offering is based on Supermicro Microcloud™ and incorporates advanced software features to create an Enterprise class cloud solution. Our offering features security, identity and access management in compliance with EU regulations in reference to where your data is held and stored.

The Boston Cloud system is effective for cloud computing, data centre, web hosting and virtualization environments. The benefits of using Microcloud™ for your business is the ability to scale processing capabilities to mirror your requirements; saving you space, power and money.

The solutions can be installed on-premise or off-premise to provide a complete IaaS (Infrastructure as a Service) that can expand online to create a hybrid-cloud. The platforms are ideally suited for host service providers or system integrators wishing to provide a full end to end cloud service with multi-tenancy, metering and billing facilities.

You can run highly sensitive applications in-house and tailor the solution to use external public cloud solutions as needed.

These cloud offerings are sold as pre-configured appliances and are loaded with a cloud operating system ready for use out-of-box, thus providing you a faster time to market.



Key Features

Intel® Xeon® processor E3-1200 family; socket H2 (LGA 1155) 2x 3.5" Hot-swap SATA3 (6 Gbps) 1x (x8) PCI-E 2.0 low-profile slot Up to 32GB DDR3 ECC UDIMM 1333/1066MHz Memory support; 2 channels 2x Intel 82580 GbE LAN ports 1x Dedicated LAN for IPMI Remote Management 4x 8cm Heavy duty fans with optimal cooling zone 1620W Redundant 80Plus Platinum Level power supplies



Request more information Send to a friend View all servers

  • AC / DC

    100~140V, 50/60Hz, 10 Amp Max

  • BIOS Features

    ACPI 1.0
    ACPI 2.0
    APM 1.2
    Plug and Play (PnP)
    RTC (Real Time Clock) Wakeup
    SMBIOS 2.3
    USB keyboard support

  • BIOS Type

    64Mb SPI Flash EEPROM with AMI BIOS

  • Chipset

    Intel C204 PCH

  • Colour

    Black

  • CPU Cores

    4

  • CPU Family

    Intel Xeon E3

  • CPU Manufacturer

    Intel

  • CPU Quantity (Maximum)

    1

  • CPU Series

    Intel Xeon Processor E3-1200

  • CPU Speed

    3.2 GHz

  • Drive Bays

    2 x 3.5" Hot-swap SATA

  • Expansion Slots

    1 x (x8) PCI-E 2.0 (Low-Profile)

  • Form Factor

    2U

  • GPU Family

    Matrox G-Series

  • GPU Manufacturer

    Matrox

  • GPU Memory Sizes

    16MB

  • GPU Model

    Matrox G200eW

  • HDD's (Installed)

    1TB WD SATA ( 2 x 1TB Raid 1 )

  • Input/Output

    1 x COM port
    1 x RJ45 Dedicated IPMI LAN port
    1 x VGA port
    2 x Intel 82580 GbE LAN ports
    2 x RJ45 LAN ports
    2 x SATA 3.0 ports

  • LED indicators

    Hard drive activity LED
    Network activity LED
    Power status LED
    System Overheat LED

  • Manufacturer

    Boston

  • Memory (Installed)

    16GB DDR3 1333MHz 240PIN DIMM ECC SDRAM

  • Memory (Maximum)

    32GB

  • Memory Sizes

    1GB
    2GB
    4GB
    8GB

  • Memory Type

    DDR3 ECC UDIMM 1333/1066MHz Memory support; 2 channels

  • Network Adapter

    2 x Gigabit Ethernet Ports

  • Network Ports

    2

  • Network Socket

    RJ45

  • Product Range

    Boston Quattro

  • System Cooling

    4 x 8cm Heavy duty fans with optimal cooling zone

16
January 2012

Boston Quattro 1332-T reviewed by IT Pro

The new Quattro 1332-T showcases Supermicro's MicroCloud initiative and delivers an impressive processing density in a low profile rack chassis. It is based on Supermicro Microcloud™ and incorporates advanced software features to create an Enterprise class cloud solution. In this review, Dave Mitchell finds out if Boston's future looks cloudy.

READ THE RULL REVIEW HERE
2
December 2011

Boston Quattro 1332-T reviewed by V3.co.uk

V3.co.uk recently reviewed the Boston Quattro 1332-T and found that it has lot going for it, including support for the latest Xeon E3-1200 processors. It can also work out cheaper than an equivalent stack of 1U servers, with redundant power and hot swap storage making it an appealing product. Read the review to find out more!

READ THE RULL REVIEW HERE
